4401 to 4402
- Axle: D't
- Total quantity: 2
- Year: 1928
- Manufacturer: Schwartzkopff. Works Numbers 9202, 9201 (sic. as noted from plates, April 1956. On another occasion 4402 noted as Works Number 9199)
Engine main characteristic
Engine axle type | D't |
Weight empty | 49 T |
Weight service | 60 T |
Max. axle load | 15 T |
Wheels (coupled) | 1250 mm |
Number of cylinders | 2 |
Cylinder dia | 560 mm |
Piston stroke | 630 mm |
Pressure | 12 kg/sq.cm |
Grate surface | 2.1 m2 |
Heating surface firebox | 10 m2 |
Heating surface tubes | 133.5 m2 |
Tractive effort | 12300 kg |
Pictures

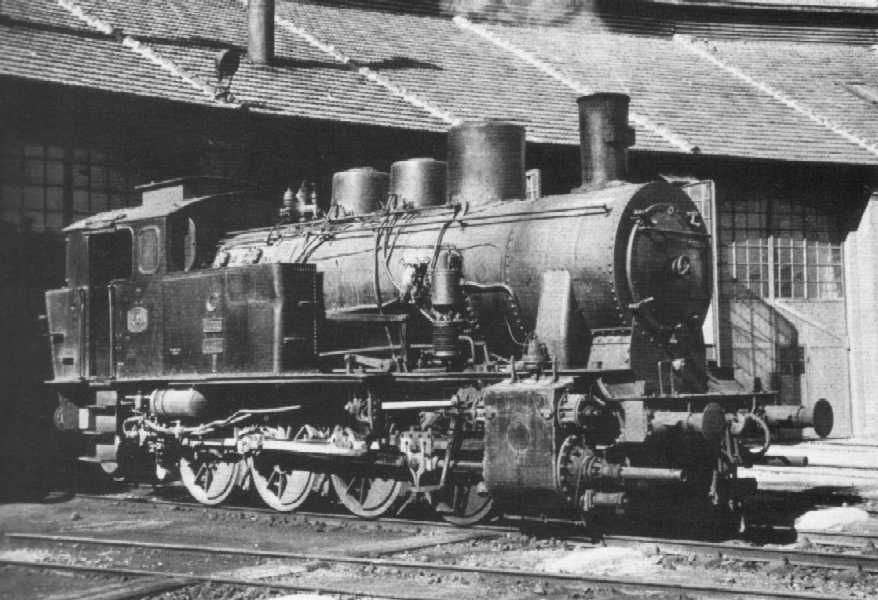

4402 at the Adana shed. Photo: unknown (TCDD?), published in "Steam in Turkey", p61 |

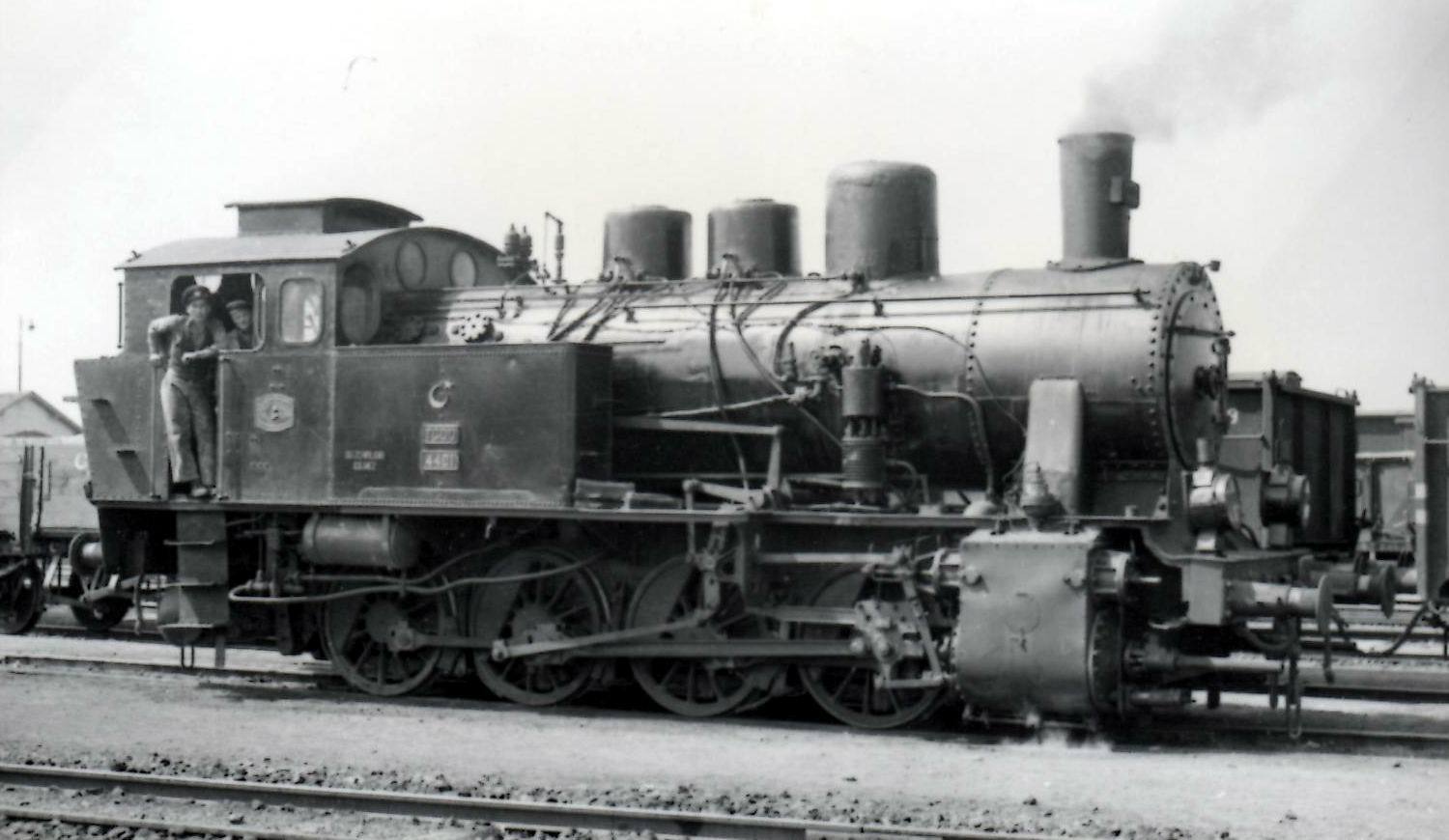

4401, Eskişehir. 19th April 1956. Photo Alan Swale |
