Home > Steam > 3351

3351 to 3355

  • Axle: C't
  • Total quantity: 5
  • Year: 1911
  • Manufacturer: Maffei. Works Numbers 3166-3170
  • Ex SCP Numbers 31-35

Pictures

3353 at Bandirma, 14th December 1955

3353, Bandırma. 14th December 1955. Photo Alan Swale
The cab of this unit has been modified, presumably to provide better crew procection against cold weather

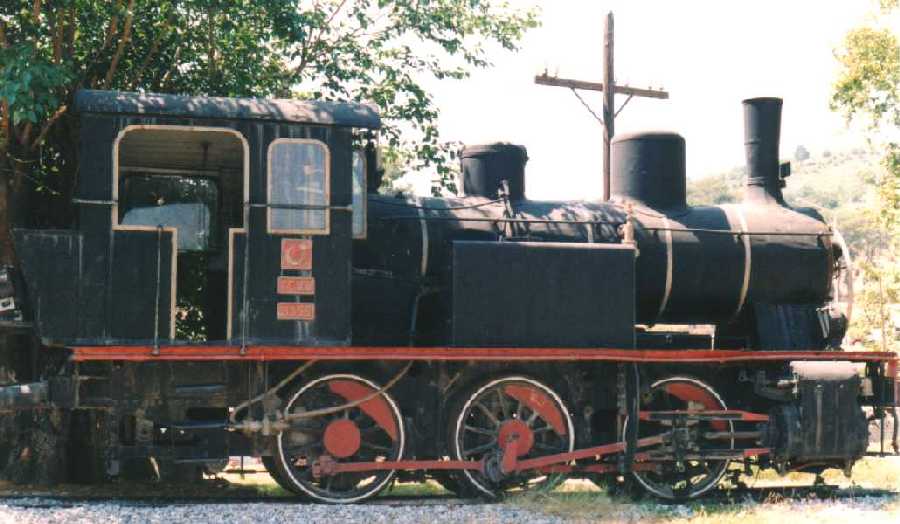

3355, Çamlık museum, August 1996. Photo JP Charrey

3355, Çamlık museum, August 1996. Photo JP Charrey

3355 Çamlık museum, 1995, photo Peter Crush

3355 Çamlık museum, 1995, photo Peter Crush

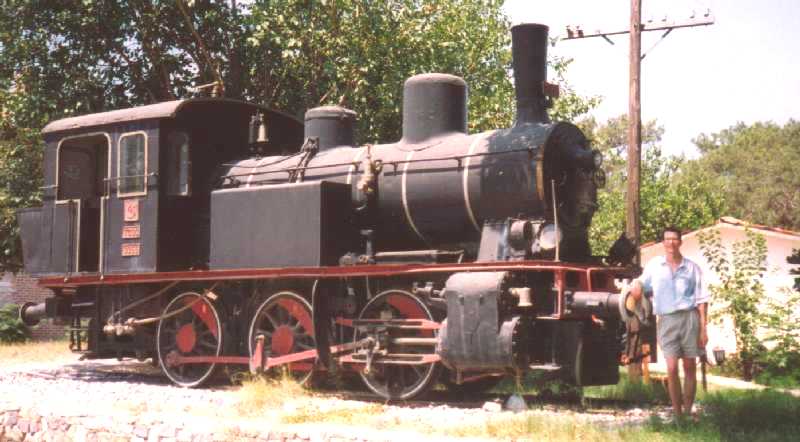

3355, Çamlık museum, August 1996. Photo JP Charrey

3355, Çamlık museum, August 1996. Photo JP Charrey, or more likely my wife because I am casually posing on this picture

Engine main characteristics

Engine
Engine axle typeC't
Driving wheel dia1250 mm
Number of cylinder2
Cylinder dia430 mm
Piston stroke630 mm
Boiler pressure12 bar
Grate surface1,5 m2
Boiler pipe length3,36 m
Heating surface67,4 m2
Superheating surfacen/a m2
Fixed wheel base length3,4 m
Coupled wheel base length3,4 m
Overall wheel base3,4 m
Weight empty29,5 T
Weight loaded39 T
Adhesion weight39 T
Load per driving wheel13 T
Water capacity3 m3
Coal capacity1 T
Overall length9,44 m
Max speed45 km/h
Tractive effort8,4 T
