Home > Steam > 3361

3361 to 3362

  • Axle: C't
  • Total quantity: 2
  • Year 1887- 1891
  • Manufacturer: Robert Stephenson.
  • Ex ORC Numbers 31 & 33

These two engines were recovered by TCDD from the ORC. ORC had 6 tank engines built by Robert Stephenson with this caracteristic water tank. The manufacturing date & delivery are not clear. 3362 has a works number, 2382, that correspond to deliveries done in mid 1880. It could therefore well be that 2382 is older than expected.

TCDD numberRS works nbrDelivery date
336123821887 (?)
336227261891

Engine main characteristics

Engine
Engine axle typeC't
Weight empty25.34 T
Weight service30.5 T
Max. axle load10.5 T
Wheels1219 mm
Number of cylinder2
Cylinder dia381 mm
Piston stroke508 mm
Pressure9.49 kg/sq.cm
Grate area1.272 m2
Heating surface firebox3.65 m2
Heating surface tubes52.53 m2
Tractive effort3440 kg

Pictures

3361 at İzmir Halkapınar, 15th December 1955

3361, İzmir Halkapınar. 15th December 1955. Photo Alan Swale

3361 at İzmir Halkapınar, 15th December 1955

3361, İzmir Halkapınar. 15th December 1955. Photo Alan Swale

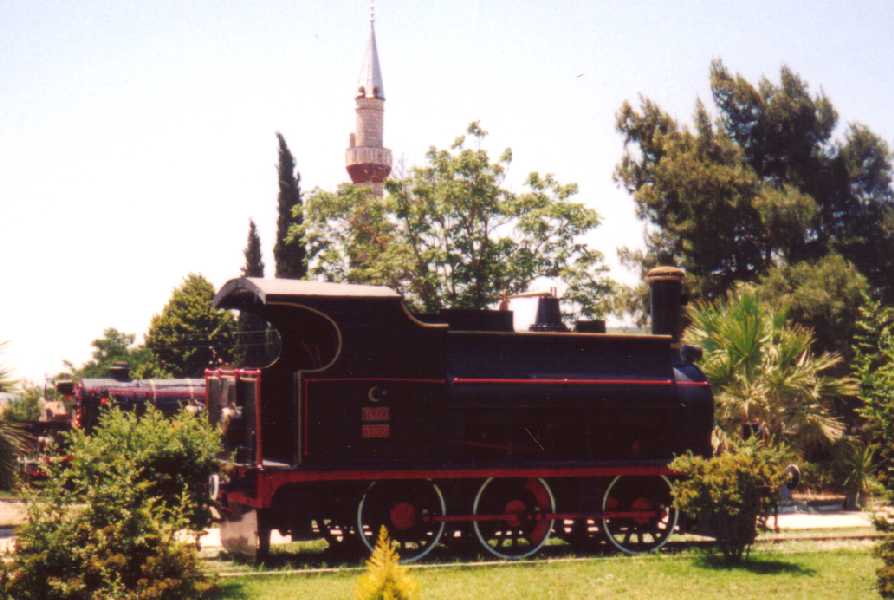

3362 Çamlık museum, 1995, photo Peter Crush

3362 Çamlık museum, 1995, photo Peter Crush

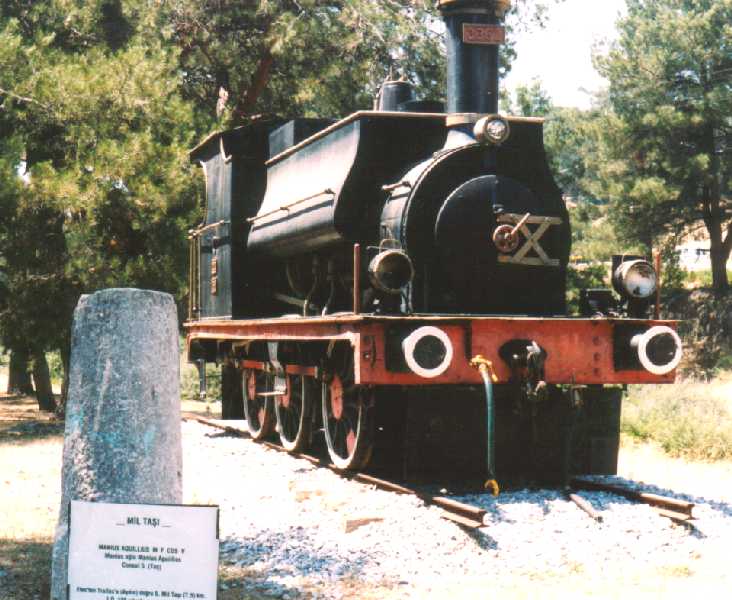

3362 in Çamlik museum. August 1996

3362 in Çamlik museum. August 1996 next to an original Roman
mile post: Via Manius Aquilius, Efes to Tralles

3362, side view, 2010, photo Alan Castle

3362 after some cosmetic repair, 2010, photo Alan Castle
