Home > Steam > 45171

45171 to 45220

  • Axle: 1'D
  • Total quantity: 50
  • First year: 1942
  • Manufacturer: ALCO, Baldwin, Lima
  • Type: USA TC S.160

During WWII, US Army transportation corps ordered a standard gauge engine for war needs. The design known as S160 was suitable for worldwide service and especially for Europe. A staggering 2120 engines were built by the American industry between 1942 and 1945. Most of them were sent to the UK and then dispatched to the continent after the 1944 invasion. Large batches were sent also to North Africa and Italy. India and USSR received also some S160. When the war was over, the S160 became useless and the USA TC started to dispose of them in 1946/1947. 50 engines were delivered to Turkey in 1947.

The S160 had a very simple design in accordance with military requirements: cheap, strong and reliable. They were not intended for a long life span. They complied with British and continental loading gauge and they had a right hand drive. They had Westhinghouse air brake. The air compressor could be placed either in front of the firebox or on the side of the firebox should the loading gauge allow it.

Pictures

45197

45197 outside its home depot at İzmit 14th July 1955. Photo Alan Swale.

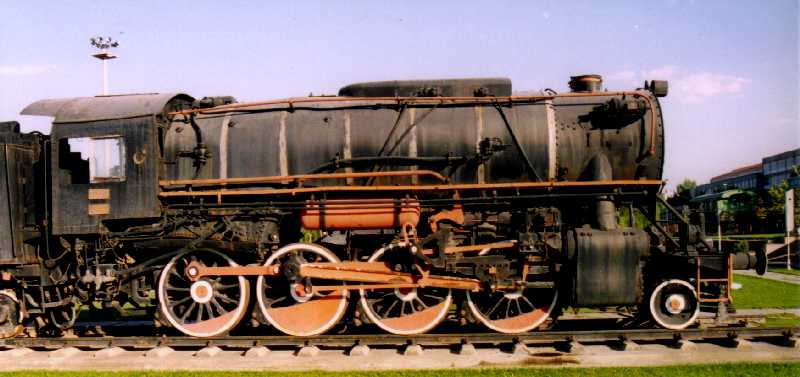

45174 Ankara museum

45174 Ankara museum, September 1998. Photo JP Charrey

45172, Çamlik museum

45172, Çamlik museum, August 1996. Photo JP Charrey

45183 ex USATC 1757 (Baldwin 1942/67591), Kayseri shed, 2nd May 1974

45183 ex USATC 1757 (Baldwin 1942/67591), Kayseri shed, 2nd May 1974, Photo: Benno Bickel

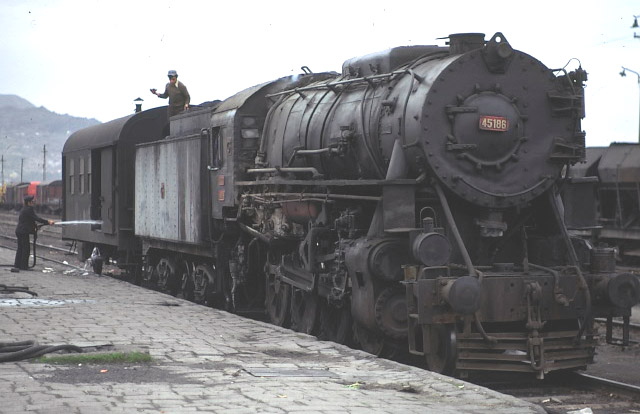

45186 at Kayseri on station pilot duties. 1 April 1974

45186 at Kayseri on station pilot duties. 1 April 1974. Photo Robin Lush

Engines numbers

Eng. NbrManuf. DateManufacturerManuf. NbrUS TC Nbr
451711943ALCo709922837
451721943Lima83412524
451731943ALCo711162919
451741943ALCo710762879
451751943Baldwin700222759
451761944Lima85083595
451771943ALCo707652416
451781943Lima83392223
451791943Baldwin694902247
451801942Baldwin646461707
451811943ALCo706322150
451821943ALCo711092912
451831942Baldwin675911757
451841943ALCo711232926
451851943Lima84502797
451861943Lima83332516
451871943Baldwin695062263
451881944Lima86625739
451891943Lima81091878
451901942Baldwin676421808
451911943Baldwin698232595
451921943Baldwin695442301
451931943Lima81401909
451941943ALCo711082911
451951944Lima89335710
451961943Baldwin694992256
451971943Lima81121881
451981943Lima81061875
451991942ALCo705302048
452001943Baldwin696122355
452011943ALCo706172135
452021943ALCo710072852
452031943ALCo709682813
452041943ALCo711192922
452051943Lima81632157
452061943Lima81231892
452071943Lima82442238
452081943ALCo706192137
452091944Lima83642547
452101943ALCo706002118
452111943Lima81241893
452121943ALCo705762094
452131944ALCo714823227
452141943Baldwin695542311
452151943Lima82162210
452161943Baldwin696042347
452171943ALCo706152133
452181944Baldwin704963539
452191943ALCo706072125
452201943Baldwin698502622

Engine main characteristics

Engine
Engine axle type1'D
Driving wheel dia1448 mm
Front bissel wheel dia838 mm
Rear bissel wheel dian/a mm
Number of cylinder2
Cylinder diameter483 mm
Piston stroke660 mm
Boiler pressure15,5 bar
Grate surface3,81 m2
Boiler pipe length4,115 m
Heating surface164 m2
Superheating surface48,1 m2
Overall length10,4 m
Fixed wheel base length4,725 m
Coupled wheel base length4,725 m
Overall wheel base7,087 m
Weight empty66,7 T
Weight loaded73,7 T
Adhesion weight64 T
Load per driving wheel16 T
Max speed70 km/h
Tractive effort14,3 T
Power (HP)1420 HP
Tender
Tender axle type2'2'
Wheel dia838 mm
Overall length8,2 m
Wheel base length5,131 m
Tender water capacity24,6 m3
Tender coal capacity7,9 T
Tender weight empty17,9 T
Tender weight loaded52,4 T
Engine + Tender
Loc + tender length18,505 m
Loc + tender wheel base15,7 m
Loc + tender weight126,1 T
