Home > Steam > 5701

5701 to 5704

  • Axle: 1'E1't
  • Total quantity: 4
  • First year: 1951
  • Manufacturer: 5701/02 Henschel. Works Numbers 25225/6 (1951), 5703/04 Jung. Works Numbers 11481/2 (1952)
  • Similar to DRG 85, for banking at Bilecik

Pictures

5701 at Bilecik. 15th September 1955

5701, Bilecik. 15th September 1955. Photo Alan Swale

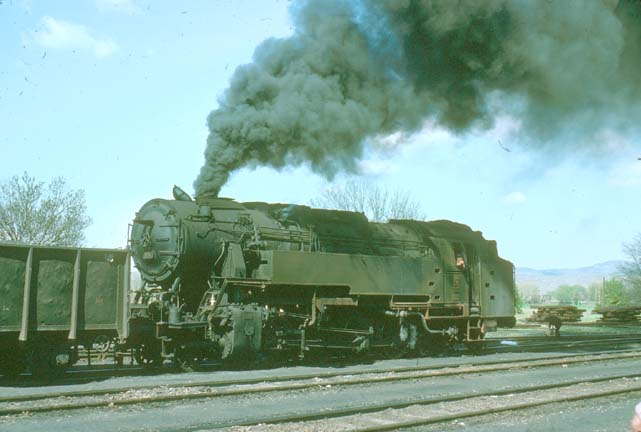

5701, a former Bilecik banker, in the yard at Tavsanli in 1976. Photo Paul Riley

5701, a former Bilecik banker, in the yard at Tavsanli in 1976. Photo Paul Riley

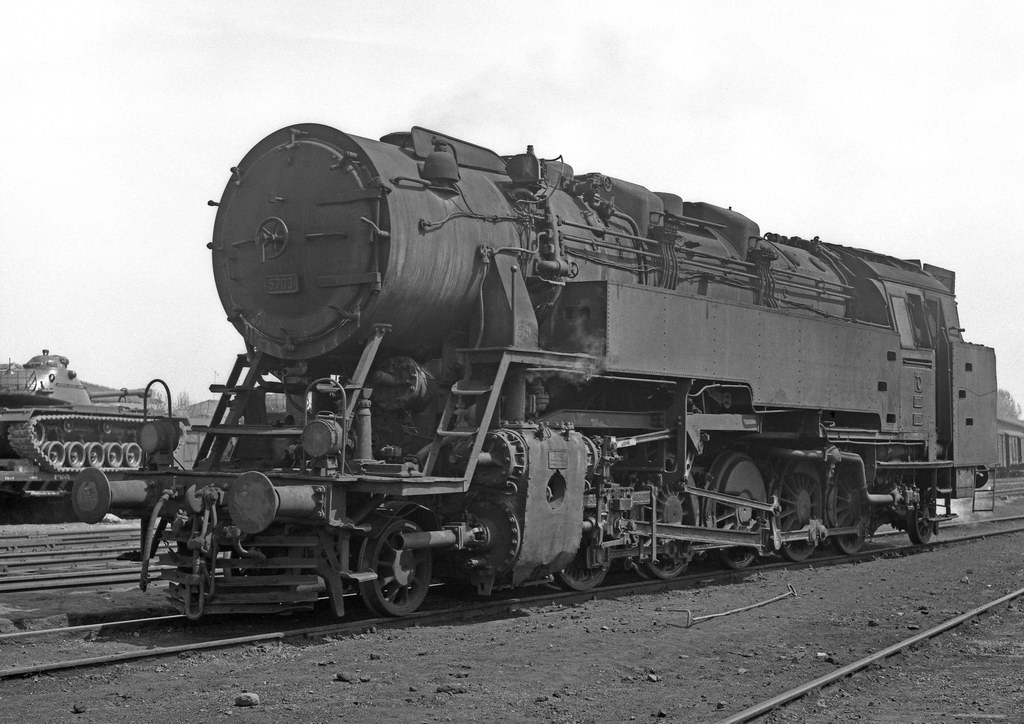

5703 waits for it's shunting duties; Adapazarı, April 1974. Photo Rainer Schnell

5703 waits for it's shunting duties; Adapazarı, April 1974. Photo Rainer Schnell

5701 at Çamlik museum; June 1998 in original conditions. Photo JP Charrey

5701 at Çamlik museum; June 1998 in original conditions. Photo JP Charrey

5701 at Çamlik museum; June 2000 after external repairs and repainting. Photo JP Charrey

5701 at Çamlik museum; June 2000 after external repairs and repainting. Photo JP Charrey

Engine main characteristics

Engine
Engine axle type1'E1't
Driving wheel dia1400 mm
Front bissel wheel dia850 mm
Rear bissel wheel dia850 mm
Number of cylinder3
Cylinder dia570 mm
Piston stroke660 mm
Boiler pressure16 bar
Grate surface4 m2
Boiler pipe length5 m
Heating surface207,5 m2
Superheating surface78,6 m2
Fixed wheel base length3,4 m
Coupled wheel base length6,8 m
Overall wheel base12,5 m
Weight empty108,4 T
Weight loaded136 T
Adhesion weight100 T
Load per driving wheel33,3 T
Water capacity14,5 m3
Coal capacity5 T
Overall length16,55 m
Max speed70 km/h
Tractive effort27,6 T
