34051 to 34060
- Axle: 1'C
- Total quantity: 10
- First year: 1930
- Manufacturer: Nohab. Works Numbers 1838-47
Pictures
34054 posing for Nohab official factory photographer, 1930 | |
Another 34051 type working a light freight, near Çankiri, about 1935 (photo Nohab) |
34052 near Yenice 2nd April 1974. Photo Robin Lush |
34053, Sirkeci (İstanbul). 20th October 1955. Photo Alan Swale |
34054 on shed at Derince. 18th August 1955. Photo Alan Swale |

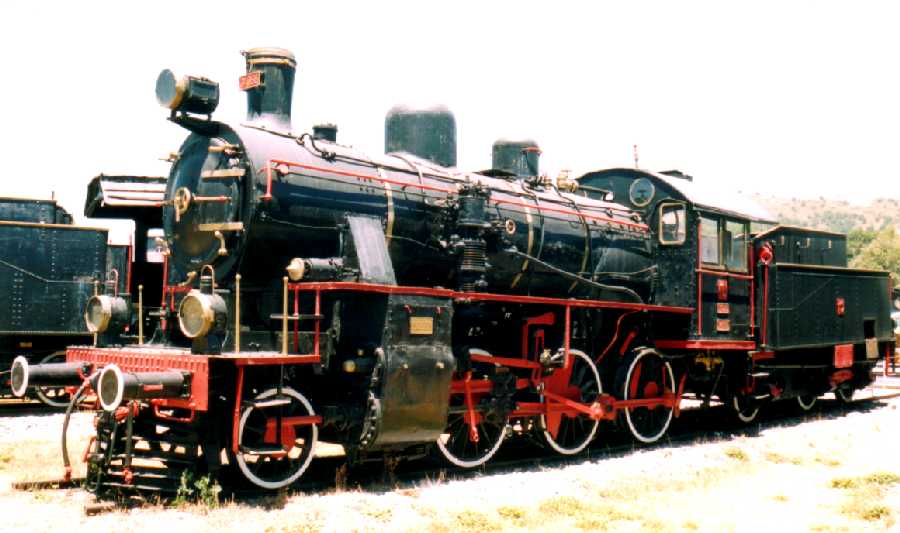

34068. Based on TCDD inventory list, this unit should probably have number 34056 - Nohab n°1843. Pictures taken in Çamlik Museum before it was repainted, June 1998. Photo JP Charrey |
same unit in June 2001. Photo JP Charrey |
34056 Çamlık museum, 1995, photo Peter Crush |
34054 plinthed in Seljuck Station. 10 June 2001. Photo JP Charrey |
Engine main characteristics
| Engine axle type | 1'C |
| Driving wheel dia | 1400 mm |
| Front bissel wheel dia | 1000 mm |
| Number of cylinder | 2 |
| Cylinder diameter | 500 mm |
| Piston stroke | 660 mm |
| Boiler pressure | 13 bar |
| Grate surface | 2 m2 |
| Boiler pipe length | 3,8 m |
| Heating surface | 103 m2 |
| Superheating surface | 38 m2 |
| Fixed wheel base length | 3,8 m |
| Coupled wheel base length | 3,8 m |
| Overall wheel base | 6,5 m |
| Weight empty | 52 T |
| Weight loaded | 56,5 T |
| Adhesion weight | 45 T |
| Load per driving wheel | 15 T |
| Tractive effort | 11,5 T |
| Power (HP) | 990 HP |
| Tender water capacity | 16,5 m3 |
| Tender coal capacity | 7 T |
| Tender weight empty | 22,3 T |
| Tender weight loaded | 45,8 T |
| Loc + tender length | 17,34 m |
| Loc + tender weight | 102,3 T |
