35001 to 35009
- Axle: 2'C
- Total quantity: 9
- First year: 1900
- Manufacturer: Wiener Neustadt, Maffei
- Ex SCP
- Probably out of service by 1956

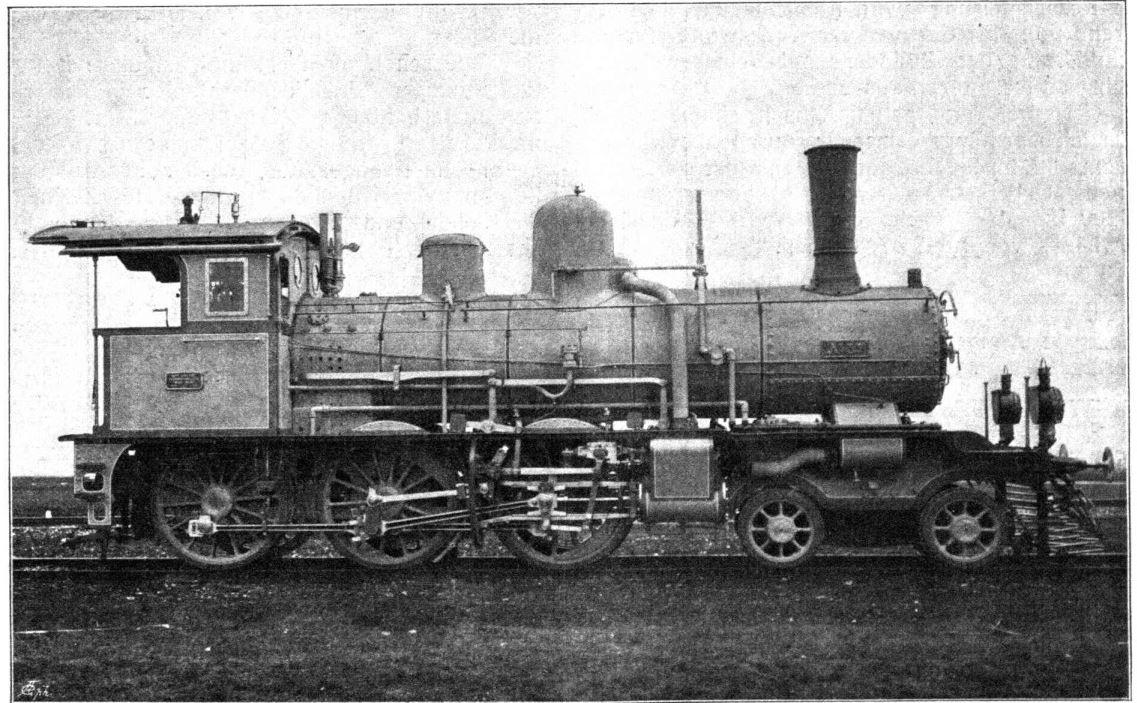

This engine is a compound 4 cylinders loco. The 2 high pressure cylinders are outside the frame, driving the 2nd axle, the 2 low pressure cylinders are inside the frame, above the bogie and driving the from axle.
Engine main characteristics
Engine axle type | 2'C |
Driving wheel dia | 1500 mm |
Number of cylinder | 4 |
Cylinder diameter | HP360/LP530 mm |
Piston stroke | 600 mm |
Boiler pressure | 13 bar |
Grate surface | 1,9 m2 |
Heating surface | 134 m2 |
Weight loaded | 54 T |
Adhesion weight | 38 T |
Notes & References
- 2C Vierzylinder-Verbund-Schnellzuglokomotive des orientalishen Bahnen, Die Lokomotive, 1909, p44 (In German, 1,6MB)
