45501 to 45518
- Axle: 1'D
- Total quantity: 18
- Year: 1924
- Manufacturer: Schneider (45501-10) Works Numbers 4412-4421. Batignolles (45511-18) Works Numbers in range 2124-35
- Ex CO Numbers 241-258
- Allocation to depot as at 10th December 1955:
- Çerkesköy – 45501/5/6/7/9-18. Yedikule – 45502/3/4/8
Pictures

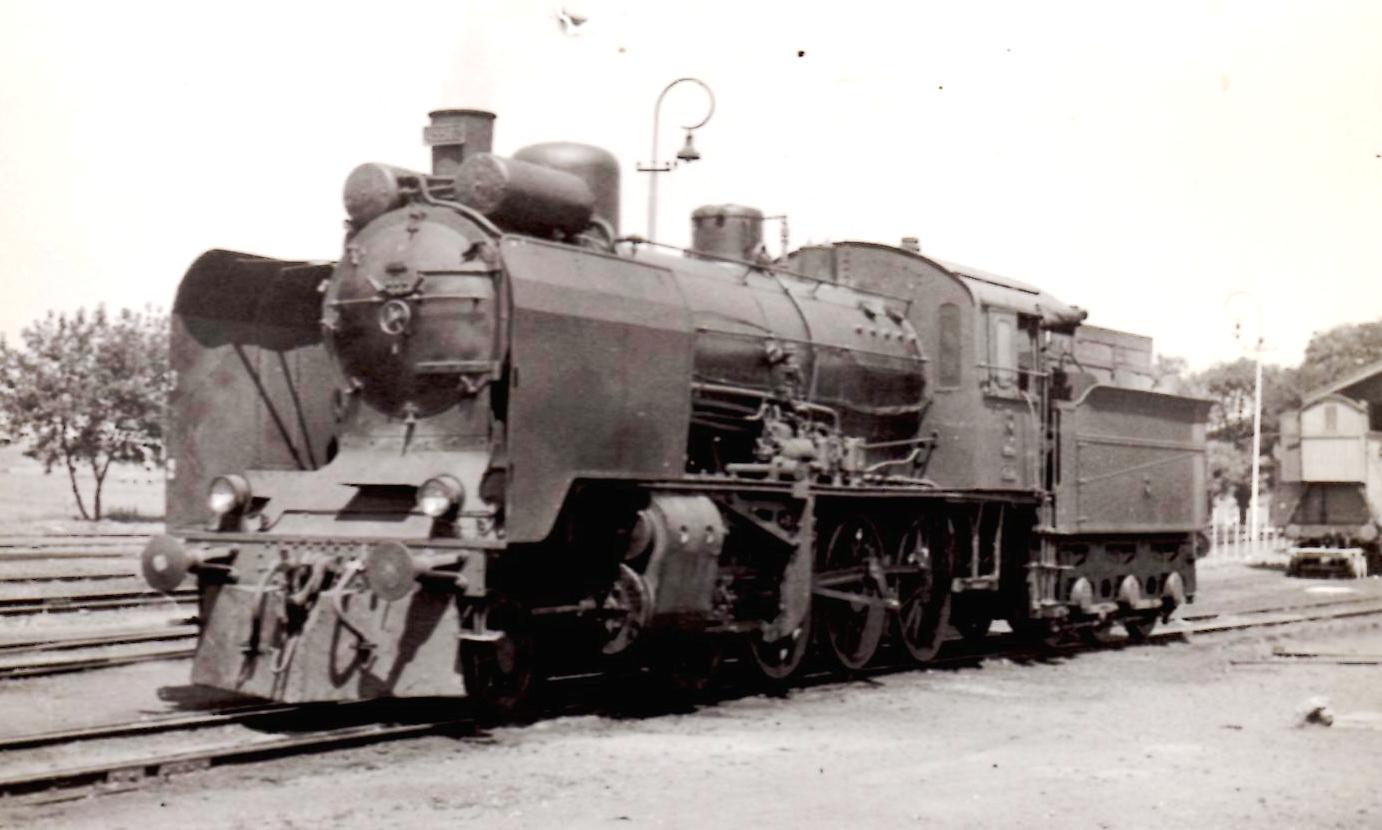

45502 Outside Yedikule Depot. 8th July 1955. Photo Alan Swale
|

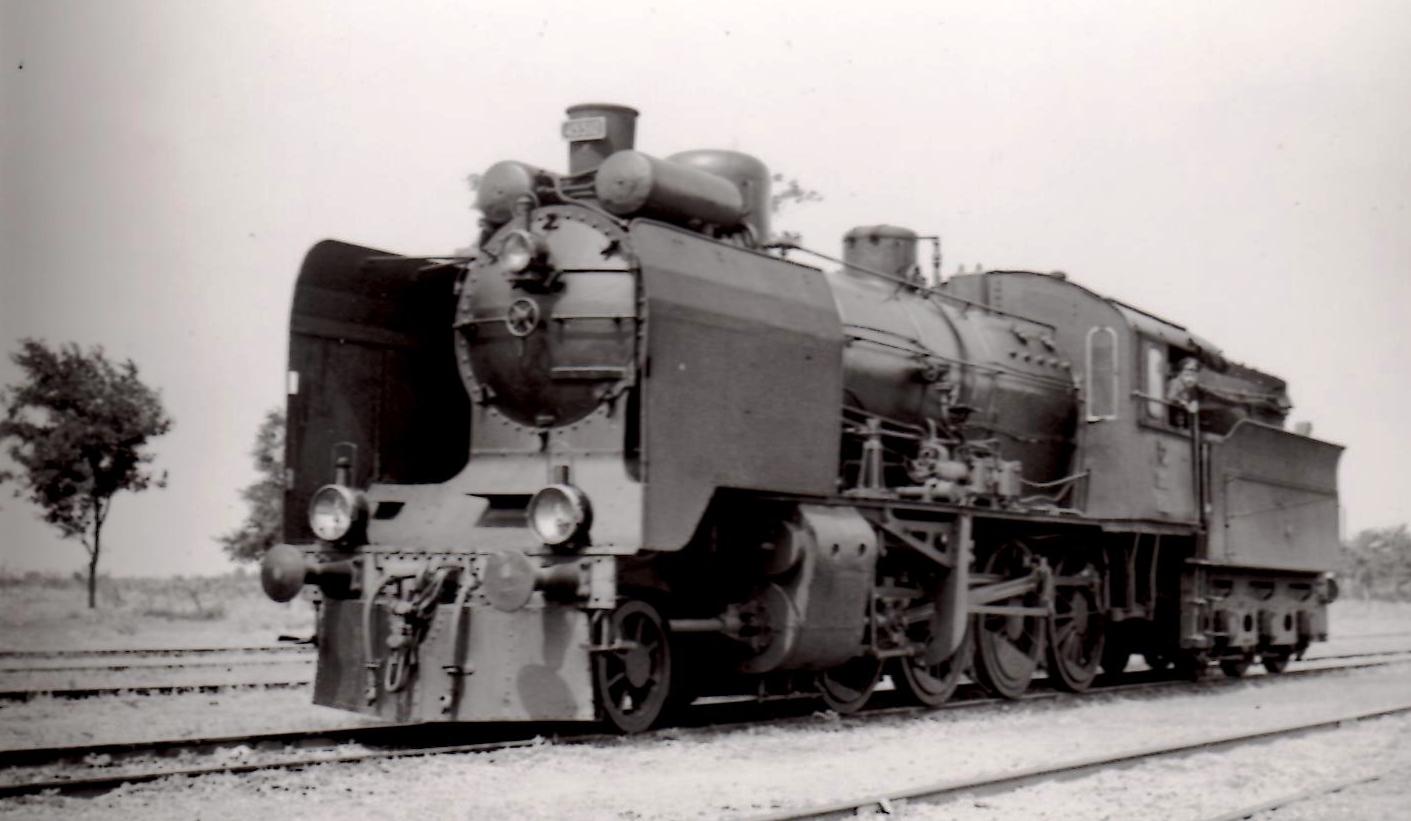

45510 At Edirne. 6th July 1955. Photo Alan Swale
|

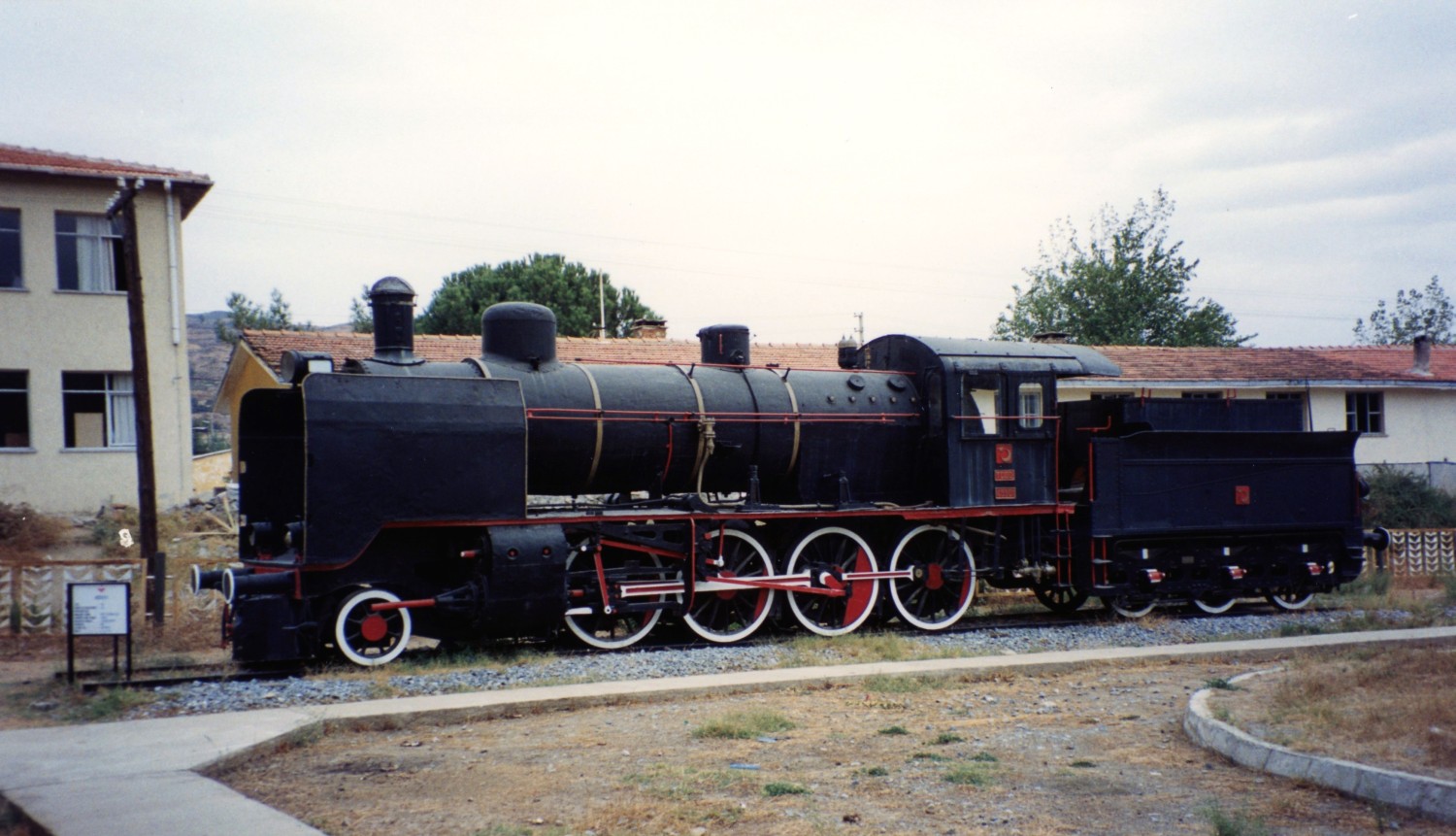

45501 Çamlık museum, 1995, photo Peter Crush
|
Engine main characteristics
Engine
| Engine axle type | 1'D |
| Driving wheel dia | 1400 mm |
| Front bissel wheel dia | 850 mm |
| Number of cylinder | 2 |
| Cylinder diameter | 550 mm |
| Piston stroke | 660 mm |
| Boiler pressure | 12 bar |
| Grate surface | 2,5 m2 |
| Boiler pipe length | 4,465 m |
| Heating surface | 154,9 m2 |
| Superheating surface | 32 m2 |
| Fixed wheel base length | 4,4 m |
| Coupled wheel base length | 4,4 m |
| Overall wheel base | 0 m |
| Weight empty | 58 T |
| Weight loaded | 65 T |
| Adhesion weight | 54 T |
| Load per driving wheel | 13,5 T |
| Max speed | 65 km/h |
| Tractive effort | 12,8 T |
| Power (HP) | 1370 HP |
Tender
| Tender axle type | 3 |
| Tender water capacity | 14 m3 |
| Tender coal capacity | 8 T |
| Tender weight empty | 15 T |
| Tender weight loaded | 37 T |
Engine + Tender
| Loc + tender length | 17,8 m |
| Loc + tender weight | 102 T |
