3326 to 3328

  • Axle: C't
  • Total quantity: 3
  • First year: 1896
  • Manufacturer: Esslingen Saronno
  • Ex CFOA

These three ex-CFOA where numbered in the same range as another 3 axles tank loco. There are speculation that 3326 and 3327 were never inventoried by TCDD. Perhaps these loco were removed from service before TCDD actually applied its numbering (due to war destruction, transfert elsewhere, ...)

Probably out of service by 1956

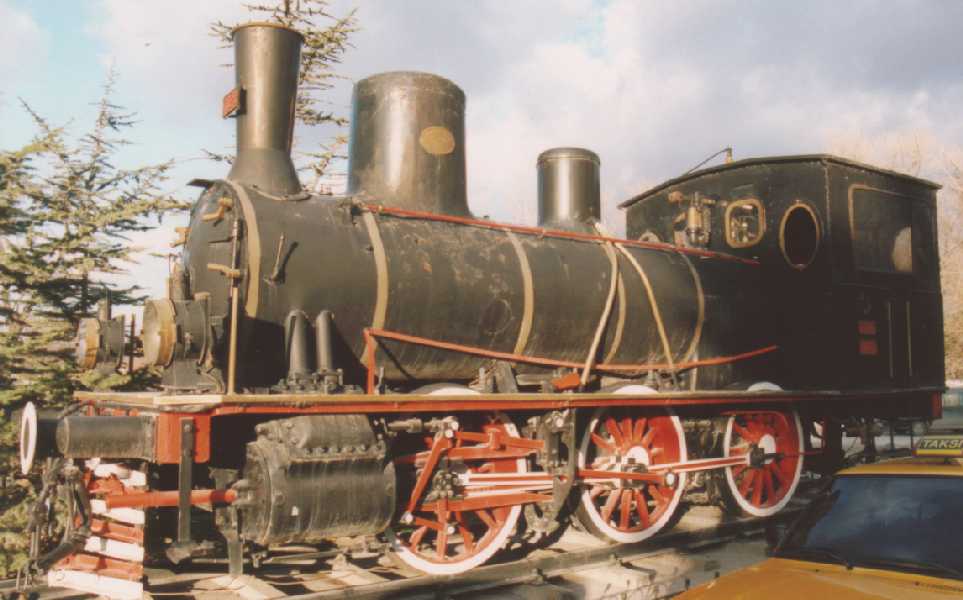

3328 plinthed in front of Ankara station

3328 plinthed in front of Ankara station, December 1997. This unit has lost its water tanks. Photo JP Charrey

Engine main characteristics

Engine axle typeC't
Driving wheel dia1330 mm
Number of cylinder2
Cylinder dia460 mm
Piston stroke600 mm
Boiler pressure10 bar
Grate surface1,59 m2
Boiler pipe length3,7 m
Heating surface102,4 m2
Superheating surfacen/a m2
Fixed wheel base length3,7 m
Coupled wheel base length3,7 m
Overall wheel base3,7 m
Weight empty31 T
Weight loaded40,9 T
Adhesion weight40,9 T
Load per driving wheel13,6 T
Water capacity4 m3
Coal capacity1 T
Overall length9,2 m
Max speed60 km/h
Tractive effort7,15 T
