3326 to 3329

  • Axle: C't
  • Total quantity: 3
  • First year: 1913
  • Manufacturer: Hanomag. Works Number 7133(3329)

Nbr 3326, 3327, 3329: ex Baghdad Rly. 3329 ex CFOA Number 751
Number 3328 was omitted most likely to avoid double number with the 3328

These three locos are numbered in the same range as the 3326, however they are entirely different looking machine. The Hanomag's are much more modern engines. But the quick spotting features is that these locos are well-tank, whereas the Saronno's are side-tank.

Engine main characteristics

Engine axle typeC't
Driving wheel dia1250 mm
Number of cylinder2
Cylinder dia450 mm
Piston stroke600 mm
Boiler pressure12 bar
Grate surface1,7 m2
Heating surface122 m2
Weight empty35 T
Weight loaded46 T
Tractive effort7300 kg

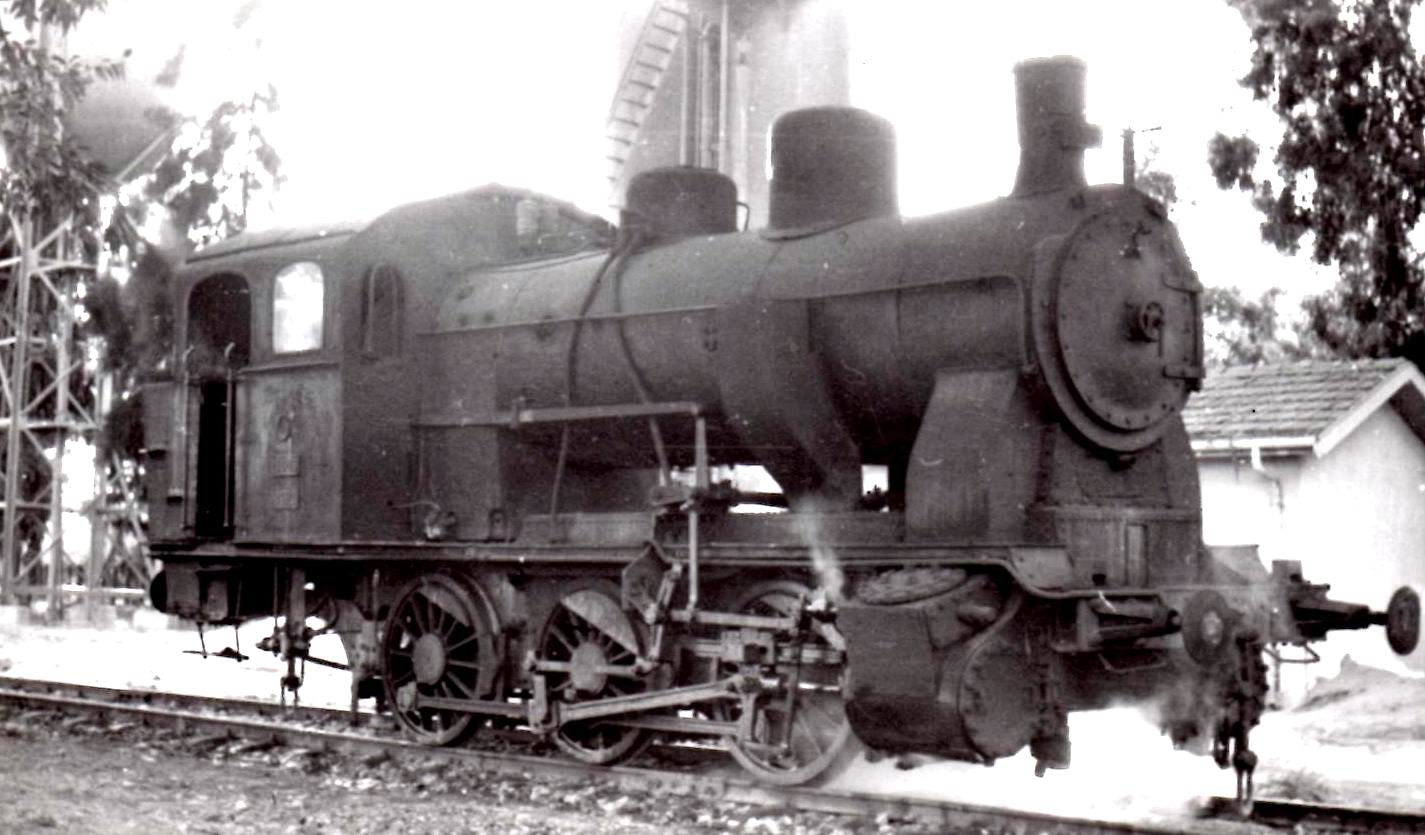

3329 at Mersin, 15th November 1955

3329, Mersin. 15th November 1955. Photo Alan Swale
