34801 to 34804
- 75cm Gauge
- Samsun Line
- Built by Krauss, Henschel
- First year 1924
- Total quantity: 4, all coal burners.
These 75cm gauge loco were used on the Samsun Çarsamba railway.
Engine main characteristics
| Engine axle type | 1'C't | |
| Weight empty | 22.2 t | |
| Weight service | 28.4 t | |
| Wheels (coupled) | 900 mm | |
| Wheels (uncoupled) | 680 mm | |
| Number of cylinder | 2 | |
| Cylinder dia | 340mm | |
| Piston stroke | 450 mm | |
| Pressure | 12 kg/sq.cm | |
| Heating surface firebox | 34.4 m2 | |
| Heating surface superheater | 15.1 m2 | |
| Grate areas | 1.0 m2 | |
Pictures

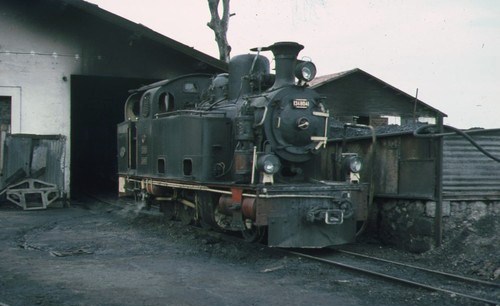

34801 in the 1970s. Col. Mahmut Zeytinoglu |

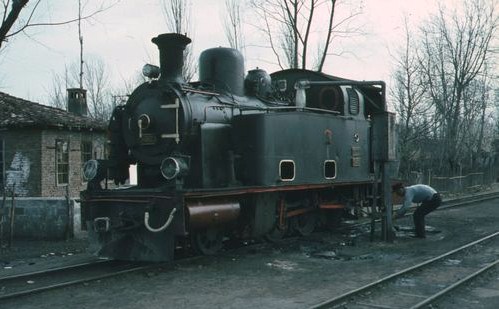

34801 in the 1970s. Col. Mahmut Zeytinoglu |

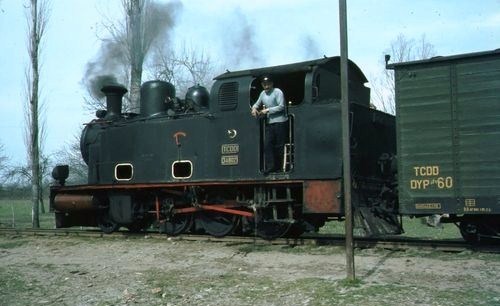

34801 in the 1970s. Col. Mahmut Zeytinoglu |
34801 in the 1970s. Col. Mahmut Zeytinoglu |
