Home > Steam > 44091

44091 to 44094

  • Axle: D
  • Total quantity: 4
  • First year: 1906
  • Manufacturer: Robert Stephenson. Works Numbers 3226-3229
  • Original TCDD Numbers 44111-44114
  • Ex ORC Rly Numbers 80-83

Engine main characteristics

Engine
Engine axle typeD
Driving wheel dia1384 mm
Number of cylinder2
Cylinder diameter495 mm
Piston stroke660 mm
Boiler pressure12,6 bar
Grate surface2,35 m2
Heating surface165,9 m2
Weight loaded58,1 T
Adhesion weight58,1 T
Load per driving wheel14,525 T

Pictures

44092

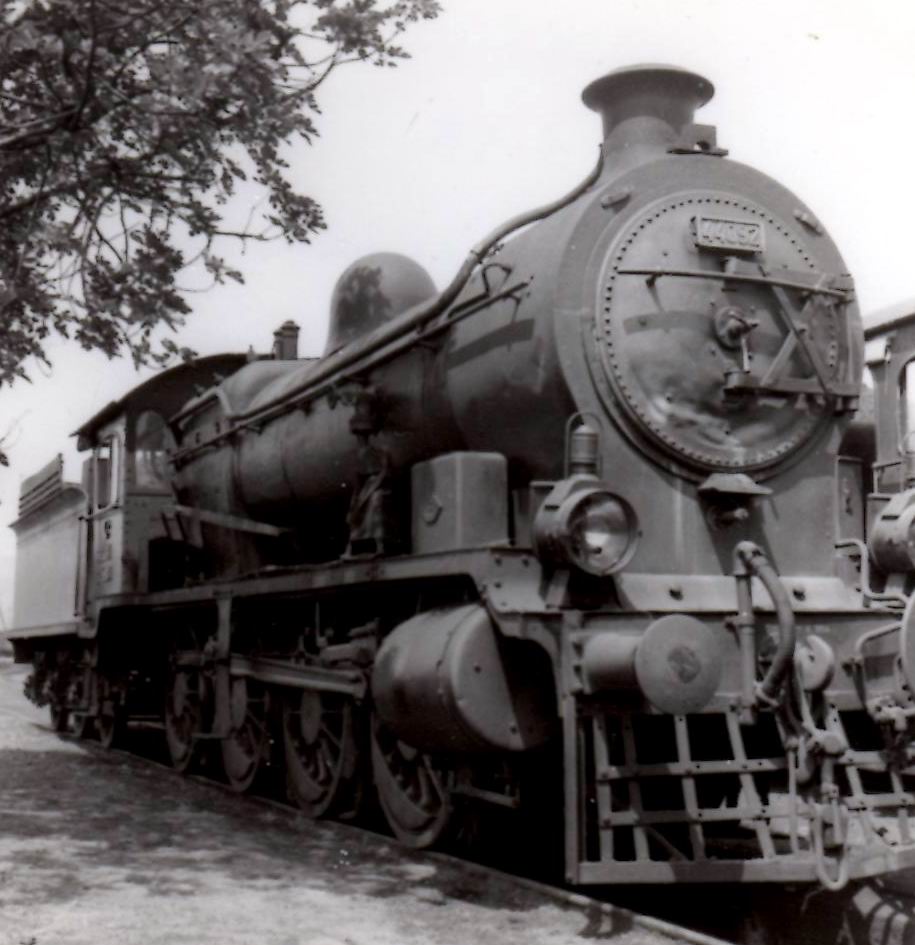

44092 at ─░zmir Alsancak 21st April 1955. Photo Alan Swale

44094

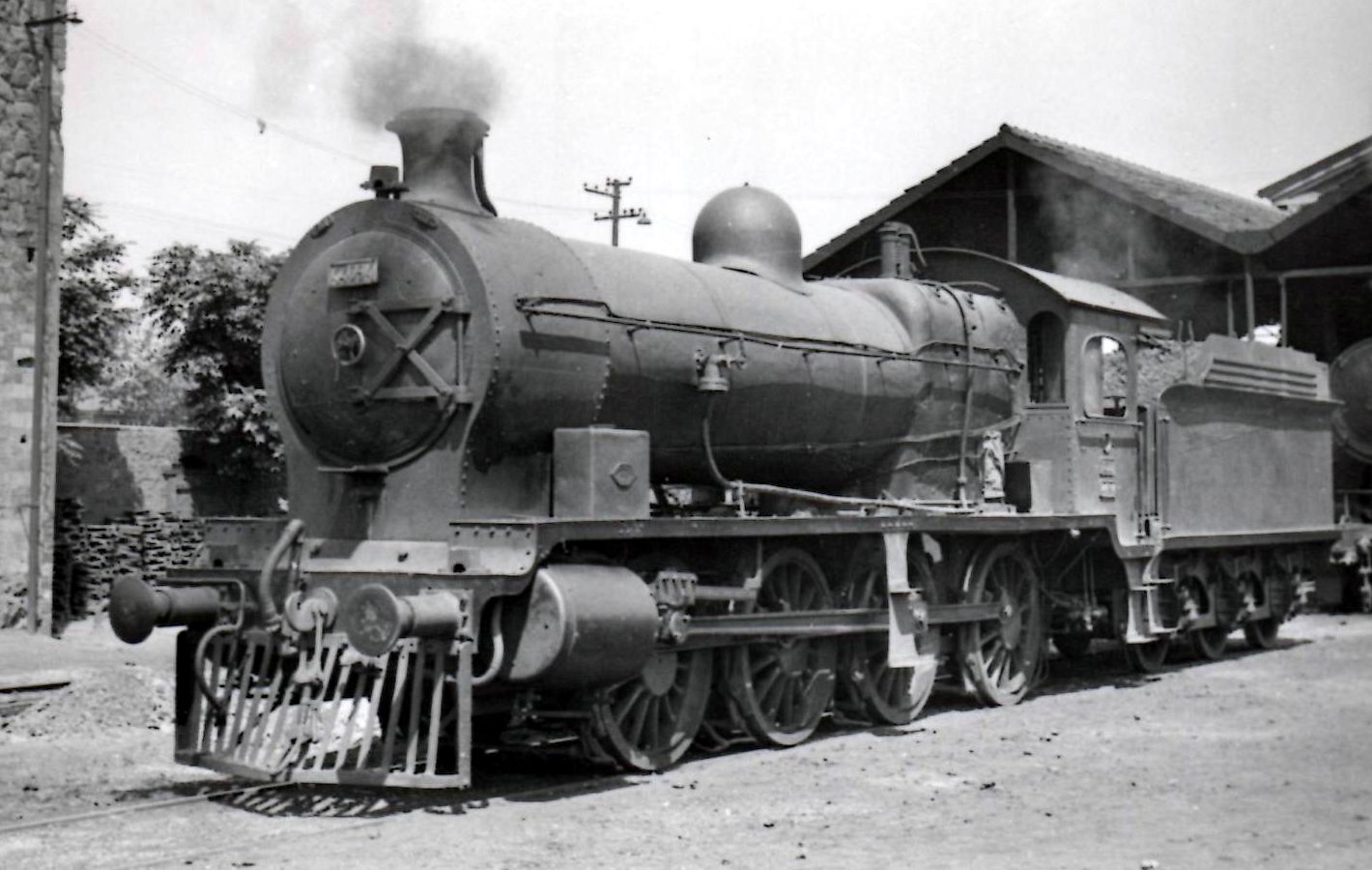

44094 at ─░zmir Alsancak 7th June 1955. Photo Alan Swale.
