3301 to 3310
- Axle: C't
- Total quantity: 10
- Year: 1918
- Manufacturer: Henschel. Works Numbers 15636-45
- Ex Turkish Army, WW1 order
Pictures
3304, Yedikule. 26th August 1955. Photo Alan Swale
|

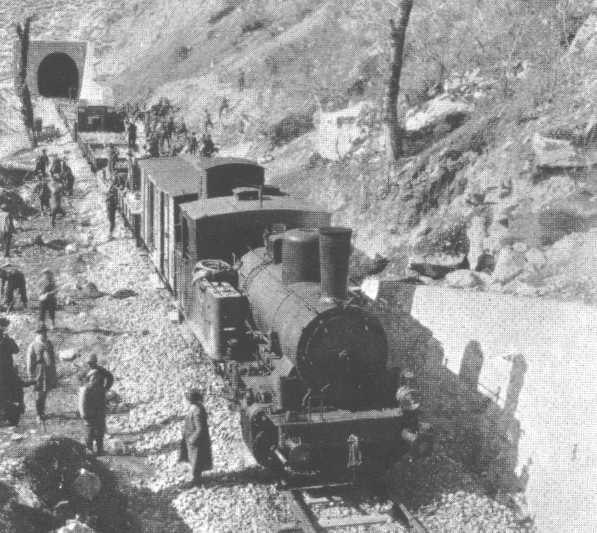

Same or similar unit heading a ballast train during the construction of the Fevzipaşa Malatya line around 1930 /33. Photo Nohab
|

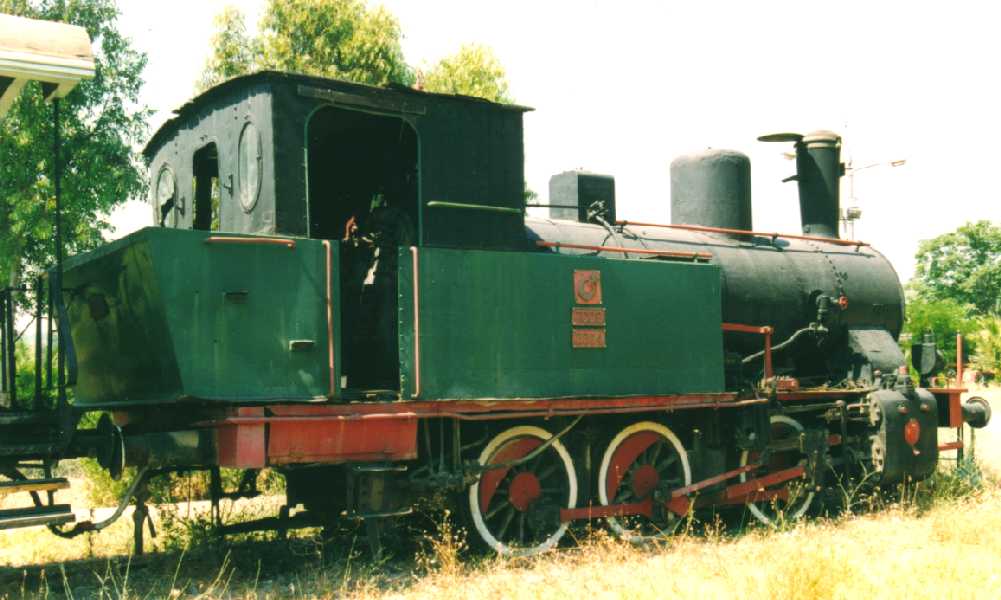

3304 Çamlık museum, 1995, photo Peter Crush
|
3304, Çamlık museum. August 1996, Photo JP Charrey
|
3304, Çamlık museum. June 1998. Photo JP Charrey
|
Engine main characteristics
Engine
Engine axle type | C't |
Driving wheel dia | 1100 mm |
Number of cylinder | 2 |
Cylinder dia | 450 mm |
Piston stroke | 550 mm |
Boiler pressure | 13 bar |
Grate surface | 1,6 m2 |
Boiler pipe length | 3,5 m |
Heating surface | 68,6 m2 |
Superheating surface | 25,5 m2 |
Fixed wheel base length | 3 m |
Coupled wheel base length | 3 m |
Overall wheel base | 3 m |
Weight empty | 34,9 T |
Weight loaded | 44 T |
Adhesion weight | 44 T |
Load per driving wheel | 14,7 T |
Water capacity | 4 m3 |
Coal capacity | 2,5 T |
Max speed | 50 km/h |
Tractive effort | 9,9 T |
Power (HP) | 590 HP |
