Home > Steam > 3311

3311 to 3325

  • Axle: C't
  • Total quantity: 15
  • Years: 1928-29
  • Manufacturer: Nohab. Works Numbers 1813-22, 1833-37

This loco is the only modern switcher / light duty in the TCDD steam engine fleet. It also the only small tank loco ordered by TCDD, all the other having been purchased by the former private companies and then transferred to TCDD during the nationalization process. This loco was ordered as part of the Nohab contract that supplied the well known G82 or some of the G10.

The design of the loco is clearly inspired from DRG BR80 type. The outline of the loco is very similar, the boilers have the same characteristics. The Turkish loco has a slightly bigger cab and a different design of the coal bunker as a consequence.

However, the 3311 is much lighter, with 16T per axle as opposed to 18T for the BR80. The 3311 has taller wheel, 1250mm instead of 1100 allowing a greater speed at the cost of a reduced tractive effort.

Pictures

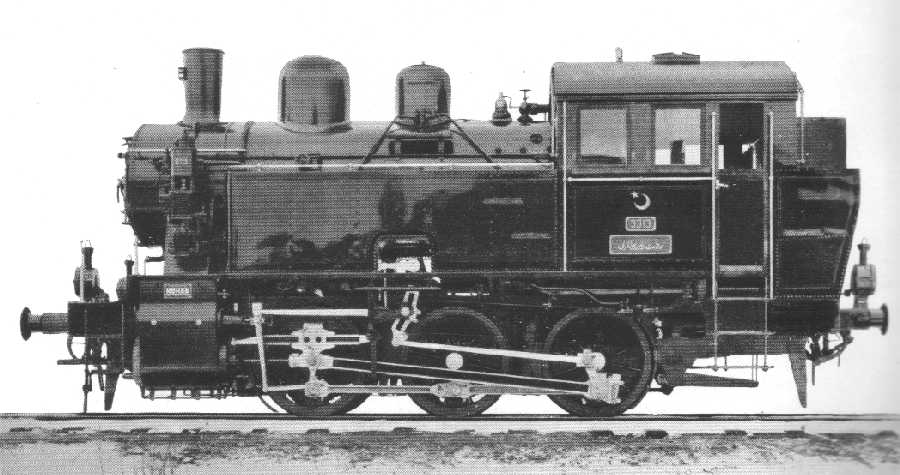

Nohab factory official picture, 1929

Nohab factory official picture, 1929

3313 at Haydarpaşa Station 17th April 1956

3313. Haydarpaşa Station. 17th April 1956. Photo Alan Swale

3322

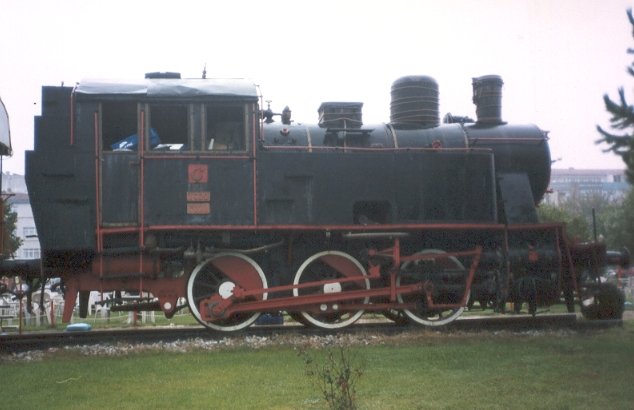

3322 plinthed in front of Samsun station August 1998. Photo JP Charrey

3322

3322 plinthed in front of Samsun station, Photo G.Tunçbilek, August 2003

3317

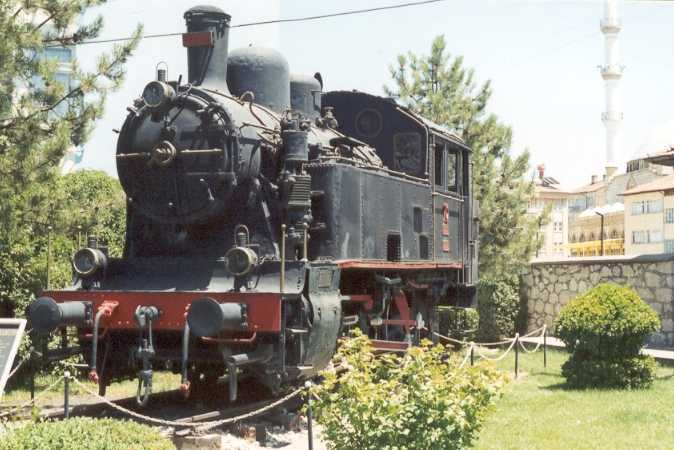

3317 plinthed in front of Malatya station. Photo G. Tunçbilek, May 2001

3317

3317 plinthed in front of Malatya station. Photo G. Tunçbilek, May 2001

3315 plinthed in front of Adana station

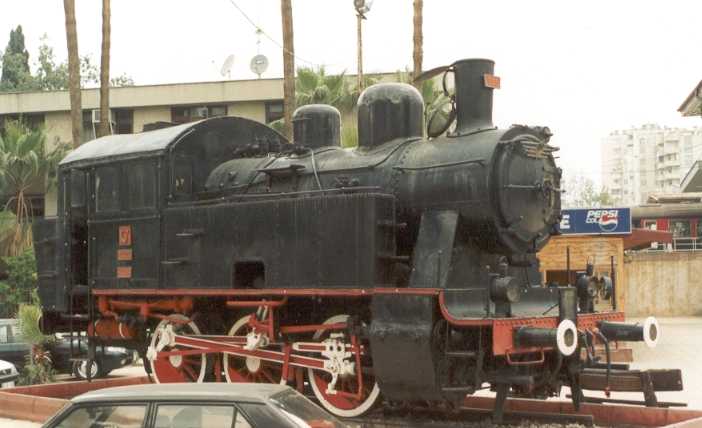

3315 plinthed in front of Adana station. Photo G. Tunçbilek, May 2002

3315 plinthed in front of Adana station

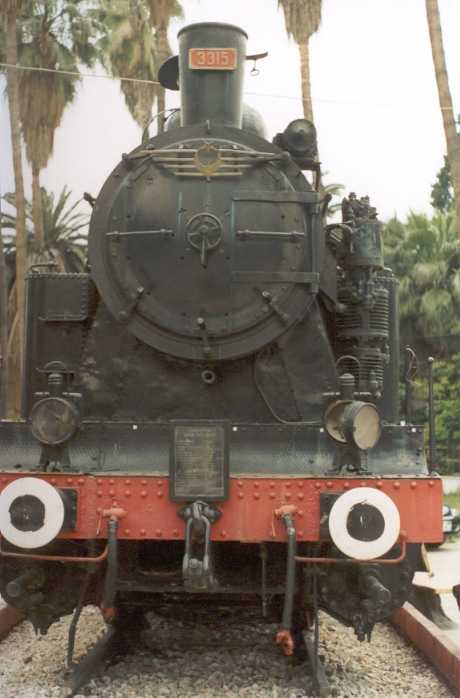

3315 plinthed in front of Adana station. Photo G. Tunçbilek, May 2002

Engine main characteristics

Engine
Engine axle typeC't
Driving wheel dia1250 mm
Number of cylinder2
Cylinder dia450 mm
Piston stroke630 mm
Boiler pressure12 bar
Grate surface1,5 m2
Boiler pipe length2,8 m
Heating surface82 m2
Fixed wheel base length3,2 m
Coupled wheel base length3,2 m
Overall wheel base3,2 m
Weight empty37,5 T
Weight loaded48 T
Adhesion weight48 T
Load per driving wheel16 T
Water capacity4,5 m3
Coal capacity1,5 T
Overall length9,7 m
Max speed50 km/h
Tractive effort9,2 T
Power (HP)470 HP
