Home > Steam > 34051

34051 to 34060

  • Axle: 1'C
  • Total quantity: 10
  • First year: 1930
  • Manufacturer: Nohab. Works Numbers 1838-47

Pictures

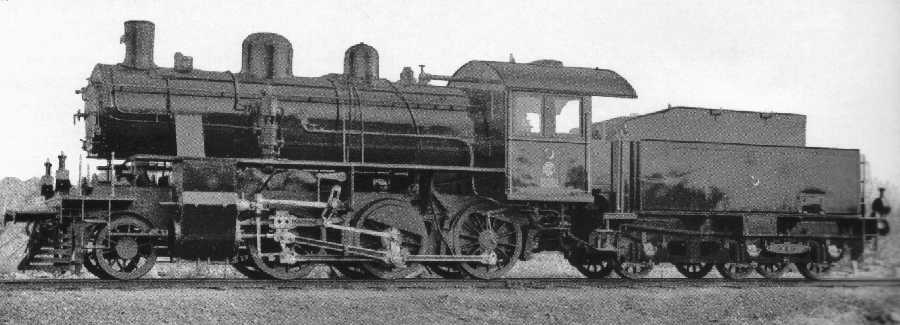

34054 posing for Nohab official factory photographer, 1930

34054 posing for Nohab official factory photographer, 1930

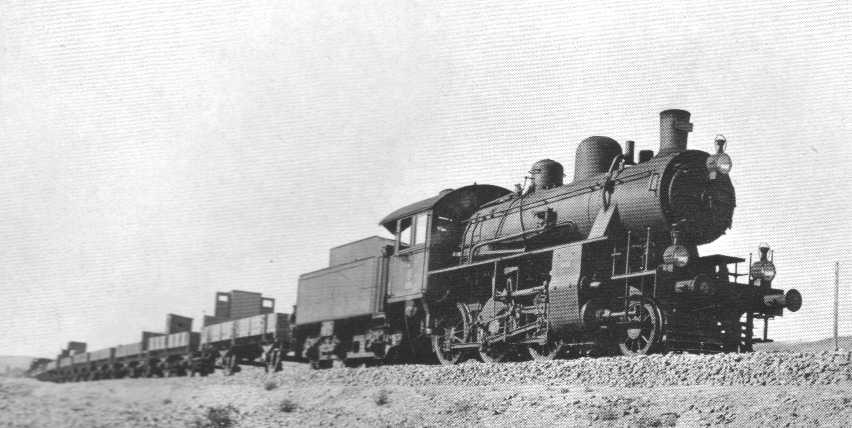

Another 34051 type working a light freight, near Çankiri, about 1935

Another 34051 type working a light freight, near Çankiri, about 1935 (photo Nohab)

34052 near Yenice 2nd April 1974. Photo Robin Lush

34052 near Yenice 2nd April 1974. Photo Robin Lush

34053

34053, Sirkeci (İstanbul). 20th October 1955. Photo Alan Swale

34054

34054 on shed at Derince. 18th August 1955. Photo Alan Swale

34056

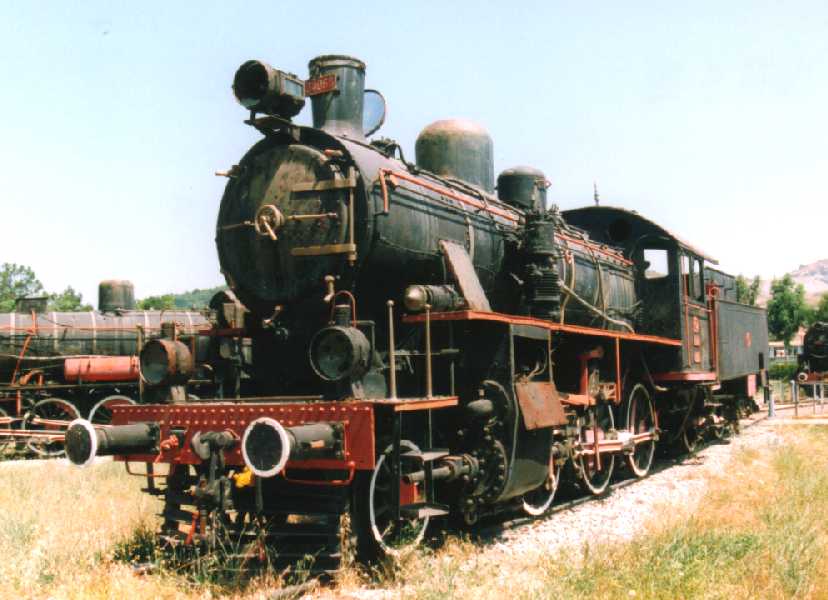

34068. Based on TCDD inventory list, this unit should probably have number 34056 - Nohab n°1843. Pictures taken in Çamlik Museum before it was repainted, June 1998. Photo JP Charrey

34068 fl

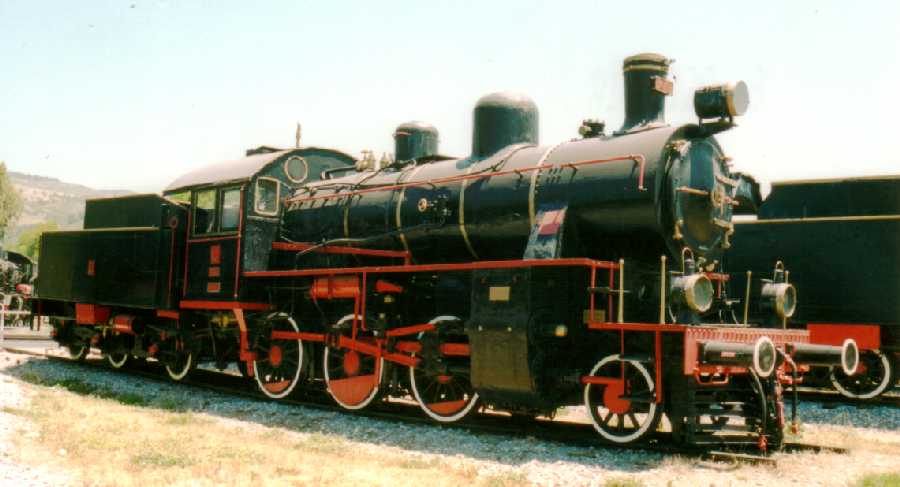

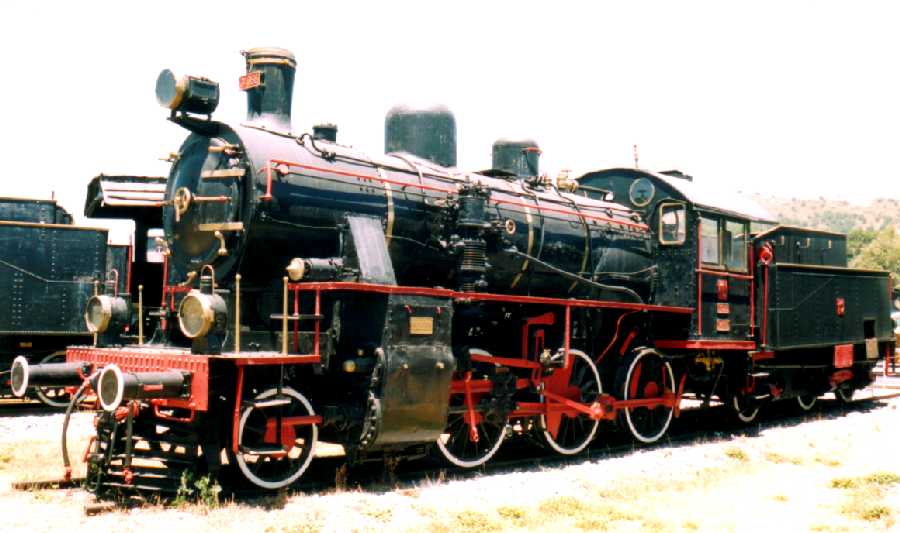

same unit in June 2001. Photo JP Charrey

34056 Çamlık museum, 1995, photo Peter Crush

34056 Çamlık museum, 1995, photo Peter Crush

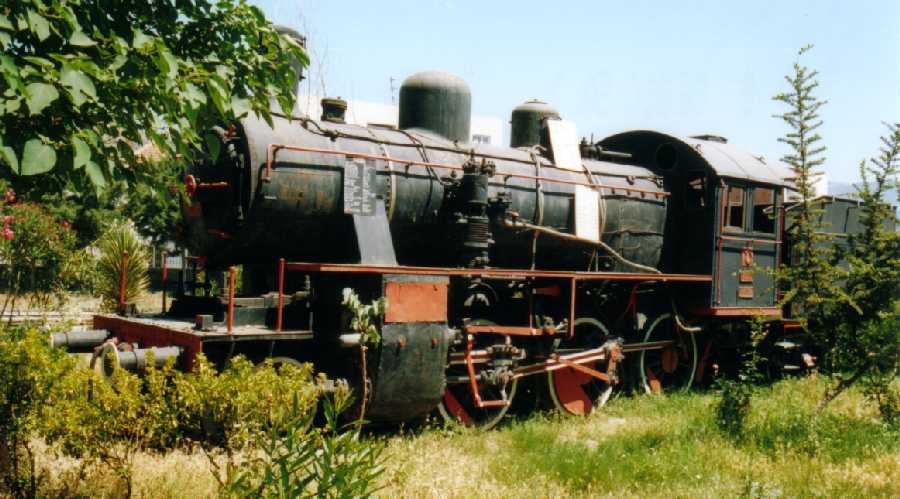

34054 plinthed in Seljuck Station. 10 June 2001

34054 plinthed in Seljuck Station. 10 June 2001. Photo JP Charrey

Engine main characteristics

Engine
Engine axle type1'C
Driving wheel dia1400 mm
Front bissel wheel dia1000 mm
Number of cylinder2
Cylinder diameter500 mm
Piston stroke660 mm
Boiler pressure13 bar
Grate surface2 m2
Boiler pipe length3,8 m
Heating surface103 m2
Superheating surface38 m2
Fixed wheel base length3,8 m
Coupled wheel base length3,8 m
Overall wheel base6,5 m
Weight empty52 T
Weight loaded56,5 T
Adhesion weight45 T
Load per driving wheel15 T
Tractive effort11,5 T
Power (HP)990 HP
Tender
Tender water capacity16,5 m3
Tender coal capacity7 T
Tender weight empty22,3 T
Tender weight loaded45,8 T
Engine + Tender
Loc + tender length17,34 m
Loc + tender weight102,3 T
