55001 to 55049
- Axle: E
- Total quantity: 49
- First year: 1922/27
- Manufacturer: Nohab, Schwarzkopff, Henschel
- Ex CFOA Rly, Ex KPEV G10
The 55001 are plain Prussian G10. The first G10 in Turkey were former KPEV engines transferred during World War 1 or very soon after. Subsequently the CFOA and then TCDD continued to order them because this engine suited very well the need of the railway. The 55001 were used until the 1980's and then scrapped upon the arrival of the diesel engines.
55001 Engine delivery
Batch | Qty | TCDD number | Manufacturer | Delivery |
1 | 6 | 55019 to 55024 | Borsig (at least for 5 of them) Ex-KPEV locos, transferred in Turkey during WW1 | 1912/1913 |
2 | 29 | 55030 to 55049 | BMAG | 1924 |
3 | 5 | 55025 to 55029 | Henschel | 1926 |
4 | 18 | 55001 to 55018 | Nohab | 1927 / 1928 |
Original and Manufacturers’ Numbering
TCDD Number | CFOA Number | Manufacturer | Manuf. Nbr | Date |
55001 | | Nohab | 1773 | |
55002 | | “ | 1774 | 1927 |
55003 | | " | 1775 | 1927 |
55004 | | " | 1776 | 1927 |
55005 | | “ | 1777 | 1927 |
55006 | | " | 1778 | |
55007 | | “ | 1779 | |
55008 | | " | 1780 | |
55009 | | " | 1787 | |
55010 | | " | 1788 | |
55011 | | “ | 1789 | |
55012 | | " | 1790 | |
55013 | | " | 1791 | |
55014 | | " | 1792 | |
55015 | | “ | 1798 | 1928 |
55016 | | " | 1799 | |
55017 | | “ | 1800 | |
55018 | | " | 1801 | |
55019 | | | | |
55020 | | Borsig | 8529 | 1913 |
55021 | | " | 8573 | 1913 |
55022 | | | | |
55023 | | Henschel | 13468 | 1915 |
55024 | | | | |
55025 | 475 | Henschel | 20562 | 1926 |
55026 | 476 | " | 20563 | 1926 |
55027 | 477 | " | 20564 | 1926 |
55028 | 478 | " | 20565 | 1926 |
55029 | 479 | " | 20566 | 1926 |
55030 | 480 | Schwarzkopf | 8334 | |
55031 | 481 | " | 8335 | |
55032 | 482 | " | 8336 | 1924 |
55033 | 483 | " | 8337 | 1924 |
55034 | 484 | " | 8338 | 1924 |
55035 | 485 | " | 8339 | |
55036 | 486 | " | 8340 | |
55037 | 487 | " | 8341 | |
55038 | 488 | " | 8342 | |
55039 | 489 | " | 8343 | |
55040 | 490 | " | 8344 | |
55041 | 491 | " | 8345 | |
55042 | 492 | " | 8346 | |
55043 | 493 | " | 8347 | |
55044 | 494 | " | 8348 | |
55045 | 495 | " | 8349 | |
55046 | 496 | " | 8350 | 1926 |
55047 | 497 | " | 8351 | 1926 |
55048 | 498 | " | 8352 | |
55049 | 499 | " | 8353 | |
Pictures
55001 type, Nohab factory picture, 1927
|
55017 outside Uşak Depot. 6th June 1955. Photo Alan Swale
|
55020 outside Ankara Depot 24th February 1956.
Photo Alan Swale
|

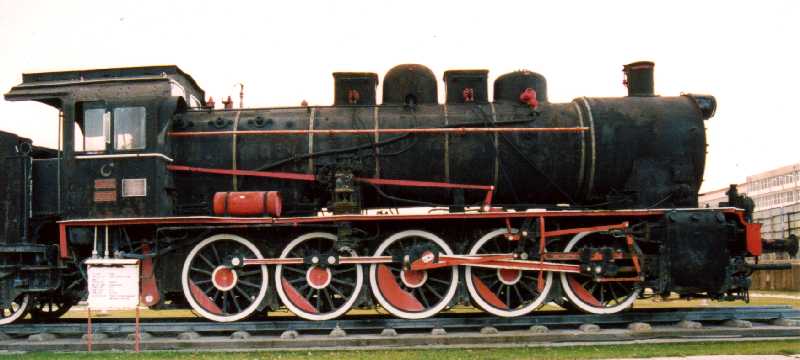

55047, Ankara museum, November 2003. Photo JP Charrey
|
55028 of the Prussian G10 design heads the 9h35 mixed from Izmir to Denizli approaching Selcuk. Photo Paul Riley March 1976
|

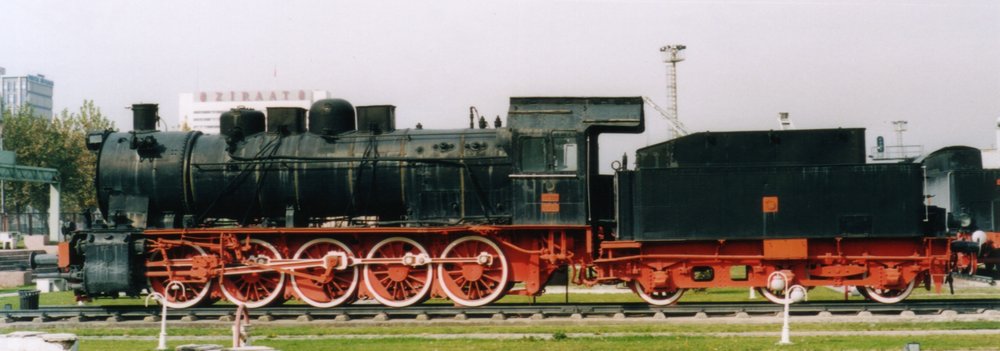

55047, Ankara museum, December 1997. Photo JP Charrey
|
55034 in Afyon in July 1990. Photo Marius Declerck
|
Engine main characteristics
Engine
Engine axle type | 1'E |
Driving wheel dia | 1400 mm |
Front bissel wheel dia | n/a mm |
Rear bissel wheel dia | n/a mm |
Number of cylinder | 2 |
Cylinder diameter | 630 mm |
Piston stroke | 660 mm |
Boiler pressure | 12 bar |
Grate surface | 2,63 m2 |
Boiler pipe length | 4,7 m |
Heating surface | 141,5 m2 |
Superheating surface | 61,1 m2 |
Overall length | 11,45 m |
Fixed wheel base length | 3 m |
Coupled wheel base length | 6,02 m |
Overall wheel base | 6,02 m |
Weight empty | 70,7 T |
Weight loaded | 76,9 T |
Adhesion weight | 76,9 T |
Load per driving wheel | 15,38 T |
Max speed | 65 km/h |
Tractive effort | 16,85 T |
Power (HP) | 1290 HP |
Tender
Tender axle type | 3 |
Wheel dia | 1000 mm |
Overall length | 7,46 m |
Wheel base length | 7 m |
Tender water capacity | 16,5 m3 |
Tender coal capacity | 7 T |
Tender weight empty | 22,3 T |
Tender weight loaded | 45,8 T |
Engine + Tender
Loc + tender length | 18,91 m |
Loc + tender wheel base | m |
Loc + tender weight | 122,7 T |
