Home > Steam > 56080

56080 to 56116

  • Axle: 1'E
  • Total quantity: 37
  • First year: 1948
  • Manufacturer: Vulcan Foundry (GB), Beyer-Peacock

These engines are a subsequent manufacturing order to the 56001 / 56079. They are identical except that they were built in Great Britain. The order was placed before the war but could not be fulfilled until 1948.

These engines have such a Germanic look that it is hardly believable they were built in Great Britain.

Pictures

56086 on Eskişehir Depot. 31st May 1956

56086 on Eskişehir Depot. 31st May 1956. Photo Alan Swale

56097 on Ankara Depot. 20th August 1955

56097 on Ankara Depot. 20th August 1955. Photo Alan Swale

56084

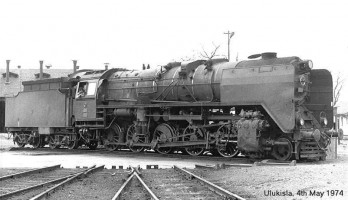

56084 (Vulcan Foundry 1948/5687), Ulukisla 4th May 1974. Photo Benno Bickel

56086

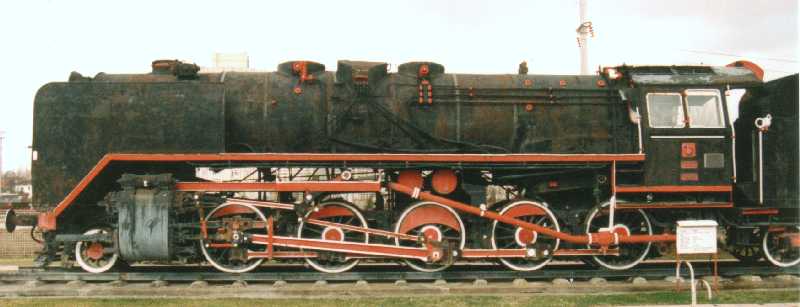

56086, Ankara museum, December 1997. Photo JP Charrey

56116

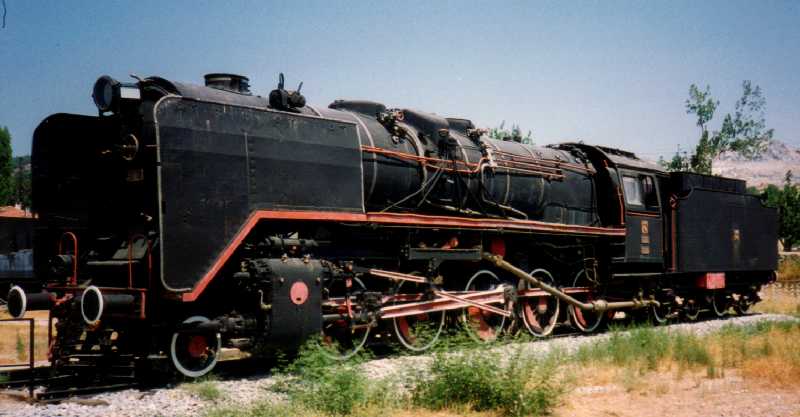

56116 Çamlik Museum, August 1996. Photo JP Charrey

56116 Çamlık museum, 1995, photo Peter Crush

56116 Çamlık museum, 1995, photo Peter Crush

56106 dumped in Konya, July 1990. Photo Marius Declerck

56106 dumped in Konya, July 1990. Photo Marius Declerck

Engine main characteristics

Engine
Engine axle type1'E
Driving wheel dia1450 mm
Front bissel wheel dia850 mm
Number of cylinder2
Cylinder diameter650 mm
Piston stroke660 mm
Boiler pressure16 bar
Grate surface4 m2
Boiler pipe length6 m
Heating surface239,2 m2
Superheating surface84,4 m2
Fixed wheel base length3,8 m
Coupled wheel base length7,6 m
Overall wheel base10,3 m
Weight empty95,9 T
Weight loaded108,6 T
Adhesion weight91,1 T
Load per driving wheel18,2 T
Max speed75 km/h
Tractive effort23,1 T
Power (HP)1900 HP
Tender
Tender axle type2'2'
Tender water capacity29 m3
Tender coal capacity8 T
Tender weight empty24,8 T
Tender weight loaded61,8 T
Engine + Tender
Loc + tender length22,36 m
Loc + tender weight170,4 T

Manufacturers’ Details

TCDD NumberManufacturerNumber/Date
56080Vulcan5683/48
56081"5684/48
56082"5685/48
56083"5686/48
56084"5687/48
56085"5688/48
56086"5689/48
56087"5690/48
56088"5691/48
56089"5692/48
56090"5693/48
56091"5694/48
56092"5695/48
56093"5696/48
56094"5697/48
56095"5698/48
56096"5699/48
56097"5700/48
56098"5701/48
56099"5702/48
56100"5703/48
56101"5704/48
56102Beyer Peacock6946/48
56103"6947/48
56104"6948/48
56105"6949/48
56106"6950/48
56107"6951/48
56108"6952/48
56109"6953/48
56110"6954/48
56111"6955/48
56112"6956/48
56113"6957/48
56114"6958/48
56115"6959/48
56116"6960/48

56088 in ODTÜ technical museum

56088 is now displayed at the Science and Technology Museum of ODTU / Middle-East Technical University, in Ankara. This loco arrived there in 2005.

56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ 56088 in ODTÜ
