56117 to 56166

  • Axle: 1'E
  • Total quantity: 50
  • Year: 1949
  • Manufacturer: CKD (Works Numbers 2500-2524), Skoda (Works Numbers 1991-2015)

Here again is a second continuation of the 56001, but this time built by the Czech industry. These engines are identical to the 56001 but have some improvements. The most visible is the tender with an all welded round tank. This tender has also a larger coal capacity.

Pictures

56140 Ankara. 24th February 1956. Photo Alan Swale

56140 Ankara. 24th February 1956. Photo Alan Swale

56161 Haydarpaşa . 17th April 1956. Photo Alan Swale

56161 at Haydarpaşa on Meram Express,
8.40 a.m. to Adana. 17th April 1956. Photo Alan Swale

56152

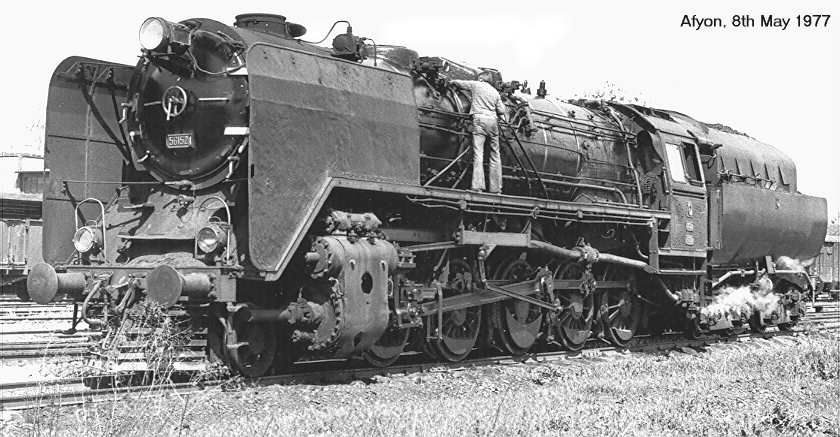

56152 Skoda 1949(2001), Afyon 8th May 1977. Photo Benno Bickel

56127 dumped in Konya, July 1990, Photo Marius Declerck 56127 dumped in Konya, July 1990, Photo Marius Declerck

56127 dumped in Konya, July 1990, Photo Marius Declerck

Engine main characteristics

Engine
Engine axle type1'E
Driving wheel dia1450 mm
Front bissel wheel dia850 mm
Number of cylinder2
Cylinder diameter650 mm
Piston stroke660 mm
Boiler pressure16 bar
Grate surface4,2 m2
Boiler pipe length6 m
Heating surface223,3 m2
Superheating surface105,8 m2
Fixed wheel base length3,8 m
Coupled wheel base length7,6 m
Overall wheel base10,3 m
Weight empty97 T
Weight loaded106,5 T
Adhesion weight92,5 T
Load per driving wheel18,5 T
Max speed70 km/h
Tractive effort23,1 T
Power (HP)1915 HP
Tender
Tender axle type2'2'
Tender water capacity29 m3
Tender coal capacity11 T
Tender weight empty20 T
Tender weight loaded60 T
Engine + Tender
Loc + tender length22,85 m
Loc + tender weight166,5 T
