56501 to 56553

  • Axle: 1'E
  • Total quantity: 53
  • First year: 1943
  • Manufacturer: Henschel, Borsig, MBA, BMAG, Wiener Lokomotivfabrik (Floridsdorf)
  • DRG 52 "Kriegslok"

Foreword

TCDD, like most European countries had it lot of BR52 KriegLoks. The shape of these rugged Decapod, with their fully closed cab is very well known and many documents and books have been published about them. The story here below will focus on the specificity of the Turkish BR52

History

When the Second World War broke out, TCDD had several outstanding locomotive orders that could no longer be filled. TCDD was in acute shortage of motive power mostly because the speed of new line openings outpaced rolling stock procurements.

Soon the Germans, as well as the allies realized this fact. In order to preserve good diplomatic relation with the then neutral Turkey, The Germans delivered two batches of BR52 to TCDD:

  • 10 BR52 purpose built for TCDD. Turkey was one of the few countries that received brand new BR52.
  • 43 BR52 built for the Deutsche Reischbahn, but loaned to TCDD in 1943/44. These engines were subsequently acquired by TCDD. Since these engines were in Turkey soon after having been manufactured, it is most probable that they arrived new in Turkey as well.

The BR52 is a special design prepared in 1942 on the basis of the BR50ük. The modification to the BR50 responded to two constraints:

  • reduce the cost of the engine, both in man-hours and in scarce material such as copper. This resulted in some innovative solution such as extended use of welds, especially for the rods.
  • improve the engine protection against frost and otherwise harsh winter condition. This specification is a consequence of the German campaign against USSR, but also from the fact that the winters in 1941 and 1942 were very harsh. Hence the fully enclosed cab and insulation casing around most of the equipment such as the air pump.

The result is a very a "down to the bones" engine where only the bear minimum is kept. Yet this loco was very modern and introduced a number of innovative solutions that became the norm after the war.

In all, The Germans manufactured more than 6700 BR52, most likely the largest quantity for a single type ever built worldwide. Over such a large batch and despite a high level of standardization, differences occurred between units. The production was spread over a large number of factories over Europe and each factory brought about changes based on its habits and know how. In addition, the German kept improving the design over time and these changes were applied differently from one factory to another.

During the war, BR52's were used on all kind of assignments throughout Europe, including Russia. At the end of the war, many engines were taken over by various countries, the largest batch outside Germany being in Poland and in Soviet Union.

TCDD design variations and changes

The first BR52, delivered by Borsig in September 1942 had a snowplow. This feature was quickly dropped on production series. However, all the 56500 of TCDD had a snowplow, often decorated with white stripes, further enhancing the visibility of this part.

The first BR52 manufactured had a bar frame, inherited from the BR50. The German then changed the design to plate frame. This change was effective in the various factories in the middle of 1943. Only a the bar frame had smoke box support beams. These beams extending from the front end buffer beam to the smokebox can be easily spotted. TCDD loco add a mix of frame types.

At first the Germans deemed smoke deflectors unnecessary for a low speed war loco. However, this proved untrue and the driving team complained about smoke. The design was changed to include the diminutive smoke deflector known as "White type". These smokescreen were scientifically designed by Ing White using trials in a wind tunnel. They were highly effective and weighted only a fifth of the BR50 smoke deflector. This smokescreen came in two variations: a rounded type and a bended type. Very few TCDD 56500 had a smoke deflector, and it seems that all of them were the bended type.

The BR52 are famous for their frost protection, designed to keep the loco and the crew warm by –40°C outside, overnight and without fire. In peace time, the loco can be parked inside a shed when idle and the frost protections become a nuisance since they prevent access to equipment for maintenance. So the 56500 gradually lost some of these protections overtime. The first to go was the enclosure around the air compressor. TCDD systematically removed them on all units. Then the shields around the water injectors and the water pipes were removed. This was not systematic and some 56500 retired with most of the shield still on. Likewise, in the original design, the turbogenerator was located on top of the firebox, and inside a rounded cover. TCDD relocated systematically this turbogenerator on all units to the right side of the smoke box, near the chimney. The cover was discarded.

Finally, some of the war time material savings feature had to be reverted. The most visible regards the smokebox. A central lock was retro fitted on all smokebox doors. This was completed with handrail to access the lock, a water drain pipe to ease cleaning the smokebox and a large head lamp support. All engines had a central lock by the end of the 1960s. Very few engines were delivered without a full width snowplow. Full width snowplow was also retrofitted to all engines by the end of 1960s.

Tender

3 types of tenders were mostly used with the BR52. Some of the BR52 were coupled K2'2'T26 derived from the tender used with the BR50. These tenders never served in Turkey. TCDD fleet was divided between the two other types:

  • The K2'2'T32 "Wannen" : this tender was designed by Westwagon and derives its name from its cylindrical shape. A very large sheet metal rolled to form half a circle made both the bottom of the water tank and the frame. The bogies and the buffer beams were directly welded to this sheet. This design commonly seen now on tank cars was very innovative in 1942.
  • K4T30 "Steifrahmen is a no less surprising tender. It was designed by Wiener Lokfabrik. They used a very British solid frame and fixed axles design. Considered a backward design next to bogies counterpart, this tender perform perfectly in service and never derailed in tight curves. The sides of the water tank were covered with panel made of fiberglass as a frost protection.

These two tenders were of similar capacity and could be exchanged. Indeed, close examination of photographic records shows this did occur in practice. Presumably, TCDD managed its fleet of tenders to fit the best units.

Many tenders, both Wannen and Streifrahmen had their coal bunkers enlarged by extending it rearward, over the water tank. This modification was substantial and must have added about 1 tonne of coal capacity.

Some Wannen tenders were converted to fuel burning. A fuel tank was fitted inside the coal bank and an additional fuel tank was mounted on top of the water tank.

Livery

Color pictures from the prior to the 1960s are very rare and none are known regarding the 56500. Therefore we cannot tell with certainty which color had these machines on delivery in 1943. They could have been in the dark grey livery, or more likely in a black livery.

The TCDD black livery for these machines had the following attributes on all the machines:

  • overall black
  • red on the rods, the wheels counter weights, the running boards sides, the air tanks and the buffer beams.

Then comes the white which is not standardized across the fleet:

  • some depots applied white color around the wheel flanges, on the rod heads, on the piston crossheads
  • some depots did not apply white at all.

Towards the end of their life, the 56500 received more and more personalization such as white stripes on the snow plow, white on smokescreen edges, white around the smokebox, red or gold on the smokebox door lock, ... Some received also decorations like TCDD logos, stars & crescents,.. Consequently they all had small variations and not two engines were exactly alike.

Once retired, several engines have been either preserved, plinthed as monument or on museum display. Many, if not most, have been embellished in ways not matching their original colors and with new personalization. For example several were repainted with a red frame in a true German way.

In service

The BR52 were estimated to have 1740hp and could drag 1600 T at 60km/h on a flat line, at optimal boiler performance. In Turkey, the BR52 proved very useful, especially because of their light axle load. They were used mostly on all the "old lines" around Izmir, Afyon and on the European side. But many went to the east as well. They were used on all kind of assignments from suburban passenger trains to light freight. Double heading was common as soon as the the line had some gradients. This could be done either with another 56500 or with all kind of steam engine, newer or older.

The BR52 were not built to last and many war times features of the engines proved troublesome. Despite these drawbacks, TCDD managed to keep its 56500 in operation well into the 1980's - more than forty years of service. The following 13 engines were used until 1987/1988 and closed the steam era in Turkey: 56503, 56504, 56507, 56508, 56511, 56512, 56516, 56517, 56522, 56529, 56535, 56547 & 56553.

The BR52 is perhaps the most preserved locomotive throughout Europe. TCDD itself kept several engines, some of them in (nearly) running condition.

Pictures

56501 at Yedikule. 26th August 1955

56501 at Yedikule. 26th August 1955. This engine has plate frame, original smoke box door, no snow plow and Wannen tender. Photo Alan Swale

56522 at Konya Depot. 18th April 1956

56522 coaling at Konya. 18th April 1956. This engine has bar frame, original smoke box door, no smoke deflectors and Steifrahmen tender. Photo Alan Swale

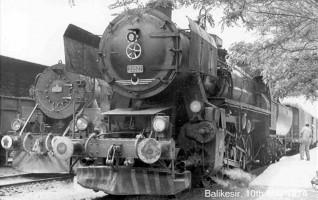

56527 ex 52 6063 (BMAG 1943/12504). Balıkesir 10th May 1974. Photo Benno Bickel

56527 at Balıkesir, 10th May 1974. This engine is showing some example of personalization: white stripes on the snow plow and a star / crescent add-on on the smoke box. The additional set of petrol lamps on the cylinder is of interrest. Photo Benno Bickel

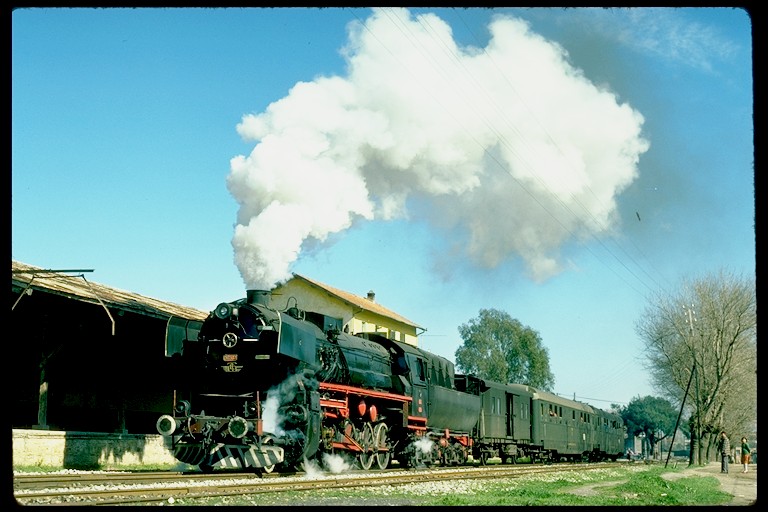

56507 leaving Ortaklar with a train for Izmir 6 March 1977. Photo Robin Lush

56507 leaving Ortaklar with a train for Izmir 6 March 1977. Photo Robin Lush

A Kriegslok of series 56501-56553 shunts the stock of the twice-weekly train to Afyon via Aydin at Izmir Alsancak. Photo Tony Bowles, 17 April 1976

A Kriegslok of series 56501-56553 shunts the stock of the twice-weekly train to Afyon via Aydin at Izmir Alsancak. Photo Tony Bowles, 17 April 1976

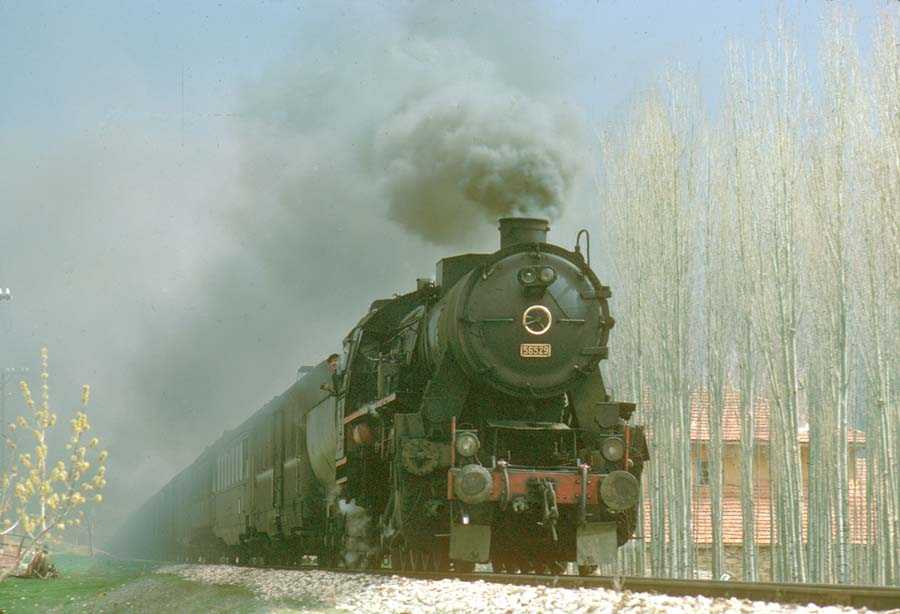

DR class 52 Kriegslok number 52.6067 built by Berliner Maschinenbau AG (12508/1943) TCDD number 56529 heads 9h35 mixed from Izmir to Denizli near Torbali. Photo Paul Riley March 1976

56529 heads 9h35 mixed from Izmir to Denizli near Torbalı. Photo Paul Riley March 1976

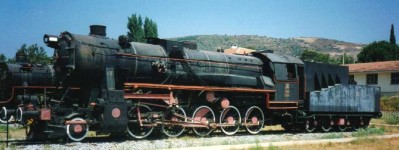

56523 Çamlık museum, 1995, photo Peter Crush

56523 Çamlık museum, 1995, photo Peter Crush

Engine main characteristics

Engine
Engine axle type1'E
Driving wheel dia1400 mm
Front bissel wheel dia850 mm
Number of cylinder2
Cylinder diameter600 mm
Piston stroke660 mm
Boiler pressure16 bar
Grate surface3,9 m2
Boiler pipe length5,2 m
Heating surface177,6 m2
Superheating surface63,7 m2
Fixed wheel base length3,3 m
Coupled wheel base length6,6 m
Overall wheel base9,2 m
Weight empty77,5 T
Weight loaded85,7 T
Adhesion weight76,5 T
Load per driving wheel15,3 T
Max speed80 km/h
Tractive effort20,4 T
Power (HP)1760 HP
Tender main characteristics
Tender type K4T30 "Steifrahmen"K2'2'T32 "Wannen"
Tender axle type--42'2'
Wheel diamm970930
Overall lengthm 9,2
Wheel base lengthm 5,9
Tender water capacitym33032
Tender coal capacityT810
Tender weight emptyT22,518,1
Tender weight loadedT60,560,1

Note: coal capacity based on original specification, modification to coal bank not taken into account.

Engine + tender main characteristics
Tender type K4T30 "Steifrahmen"K2'2'T32 "Wannen"
Loc + tender lengthm22,823
Loc + tender wheel basem18,219
Loc + tender weightT146,2145,8

Engine Numbering

Indication regarding tender, smoke deflector and frame type in the table below were built using photographic records. Such record exist for about 70% of the units and some units seem not to have been photographed. Chances are that most of these "invisible" engines were already out of service before the 1970's. 7 "Invisible engines" are 56505, 56506, 56515, 56525, 56532, 56537 & 56540.

Eng. NbrDRB nbrManuf.Manuf. DateManuf. NbrTendersmoke deflectorFrameComment
56501n/aHenschel194327735WannenYes Starred in "James Bond: From Russia with Love "
56502n/aHenschel194327736WannenYesplate
56503n/aHenschel194327737WannenYesplate
56504n/aHenschel194327738WannenYesplate
56505n/aHenschel194327739
56506n/aHenschel194327740
56507n/aHenschel194327741WannenYesplateSteif. tender in 1988
56508n/aHenschel194327742WannenYesplate
56509n/aHenschel194327743WannenYesplate
56510n/aHenschel194327744WannenYesplateConverted to fuel
5651152 364Borsig194315461WannenNoplate
5651252 365Borsig194315462WannenNoplateSteif. tender in 1990
5651352 366Borsig194315463WannenNoplate
5651452 367Borsig194315464Steif.NoplateWannen tender in 83 / 85
5651552 368Borsig194315465
5651652 4855MBA194313918Steif.Nobar
5651752 4856MBA194313919wannenNobarSteif. tender in 1955
5651852 4857MBA194313921Steif.No
5651952 4858MBA194313922Steif.No
5652052 4859MBA194313923Steif.Nobar
5652152 4860MBA194313924Steif.Nobar
5652252 4861MBA194313925Steif.Nobar
5652352 4862MBA194313926Steif.NobarCamlik
5652452 4863MBA194313927Steif.Noplate
5652552 4864MBA194313928
5652652 6062BMAG194312503WannenNoplate
5652752 6063BMAG194312504WannenYesplate
5652852 6066BMAG194312507WannenNoplate
5652952 6067BMAG194312508WannenNoplate
5653052 6068BMAG194312509WannenNoplate
5653152 6069BMAG194312510WannenNoplateHandrail on the tender, later removed
5653252 6070BMAG194312511
5653352 6071BMAG194312512WannenNoplate
5653452 6072BMAG194312513Steif.Noplate
5653552 6073BMAG194312514WannenNoplate
5653652 7285Flor194316738WannenNoplate
5653752 7286Flor194316739
5653852 7287Flor194316740WannenNoplate
5653952 7288Flor194316741WannenNo
5654052 7289Flor194316742
5654152 7290Flor194316743WannenNoplate
5654252 7291Flor194316744WannenNoplateConverted to fuel
5654352 7292Flor194316745WannenNo Converted to fuel before 1976
5654452 7425Flor194316878Steif.NoplateSeen with a Wannen tender in 1970
5654552 7426Flor194316879Steif.NoplateSeen with a Wannen tender in 1973, converted to fuel between before 1977
5654652 7427Flor194316880WannenNobar
5654752 7428Flor194316881WannenNoplate
5654852 7429Flor194316882Steif.NoplateRestored in 2007 with a Wannen tender
5654952 7430Flor194316883WannenNoplate
5655052 7431Flor194316884WannenNoplate
5655152 7432Flor194316885WannenNoplate
5655252 7433Flor194316886WannenNo
5655352 7434Flor194316887WannenNoplate

56504 in Ankara museum

56504 used to be on display in the Ankara museum
