3301 to 3310

  • Axle: C't
  • Total quantity: 10
  • Year: 1918
  • Manufacturer: Henschel. Works Numbers 15636-45
  • Ex Turkish Army, WW1 order


3304 at Yedikule 26th August 1955

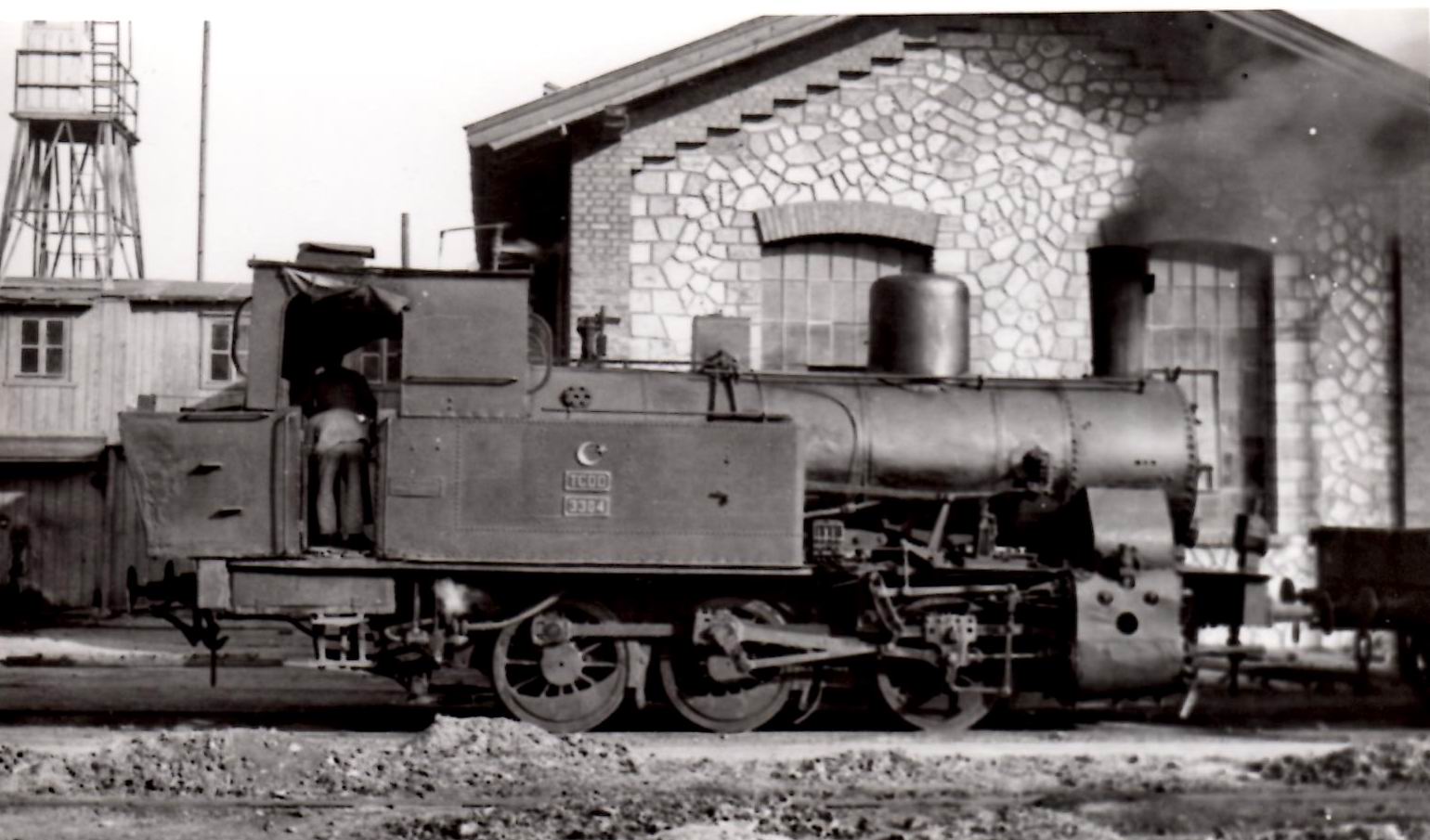

3304, Yedikule. 26th August 1955. Photo Alan Swale

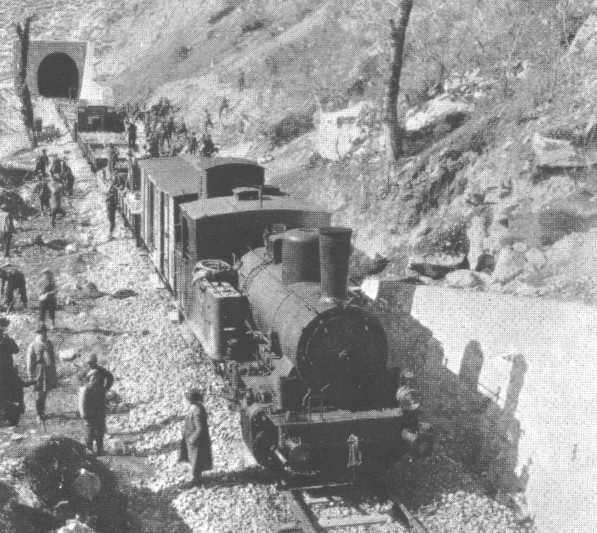

Same or similar unit heading a ballast train during the construction of the Fevzipaşa Malatya line around 1930 /33. Photo Nohab

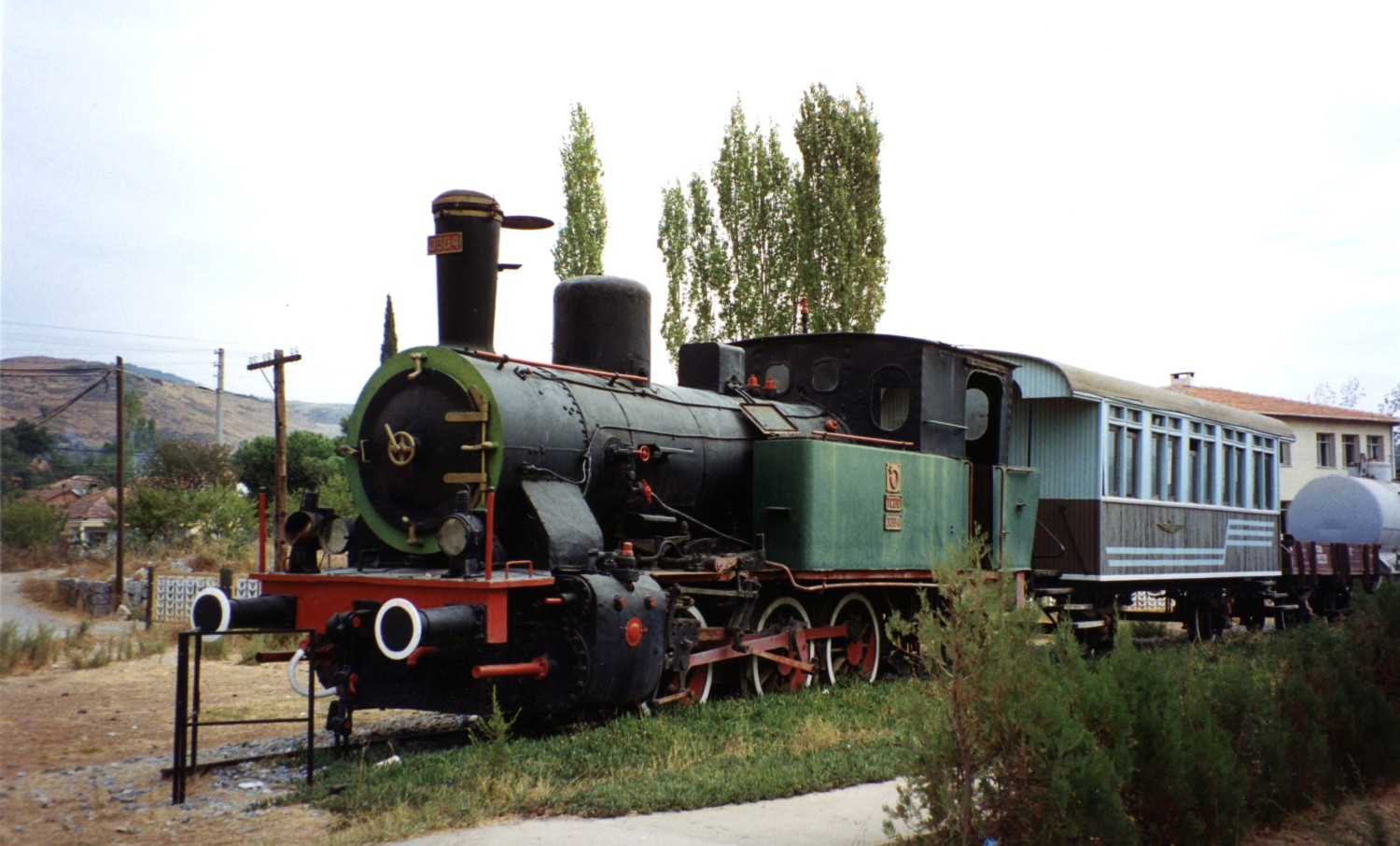

3304 Çamlık museum, 1995, photo by Peter Crush

3304 Çamlık museum, 1995, photo Peter Crush

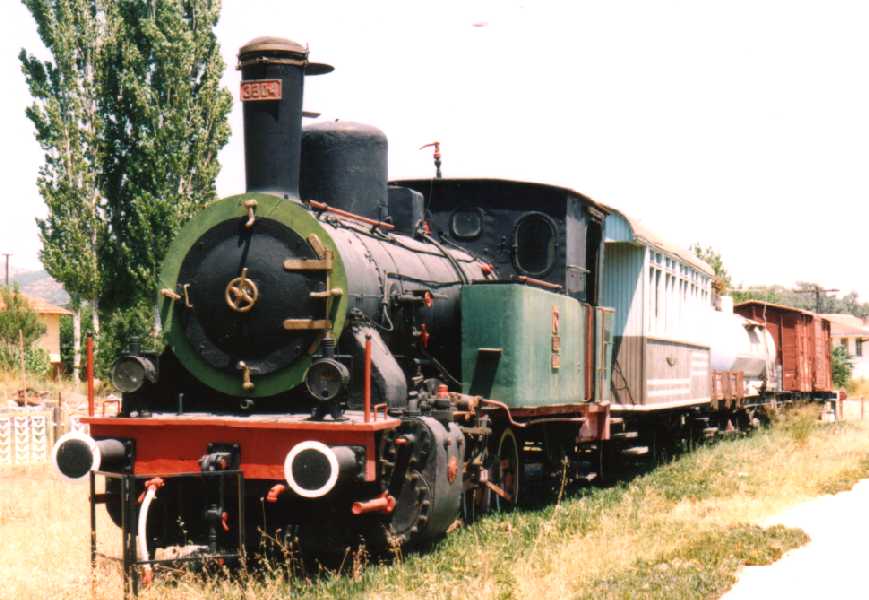

3304, Çamlık museum. August 1996, Photo JP Charrey

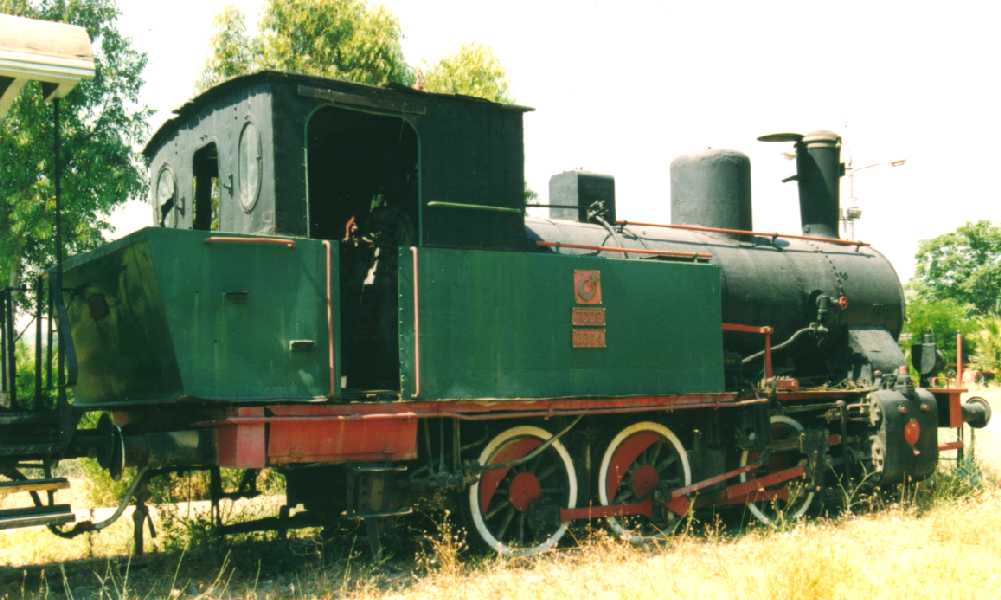

3304, Çamlık museum. June 1998. Photo JP Charrey

Engine main characteristics

Engine axle typeC't
Driving wheel dia1100 mm
Number of cylinder2
Cylinder dia450 mm
Piston stroke550 mm
Boiler pressure13 bar
Grate surface1,6 m2
Boiler pipe length3,5 m
Heating surface68,6 m2
Superheating surface25,5 m2
Fixed wheel base length3 m
Coupled wheel base length3 m
Overall wheel base3 m
Weight empty34,9 T
Weight loaded44 T
Adhesion weight44 T
Load per driving wheel14,7 T
Water capacity4 m3
Coal capacity2,5 T
Max speed50 km/h
Tractive effort9,9 T
Power (HP)590 HP
