46101 to 46106

  • Axle: 1'D1'
  • Total quantity: 6
  • Years: 1929/32
  • Manufacturer: Robert Stephenson. Works Numbers 3993/4/5/6 (1929), 4073/4 (1932)
  • Ex ORC Rly Numbers 130-135

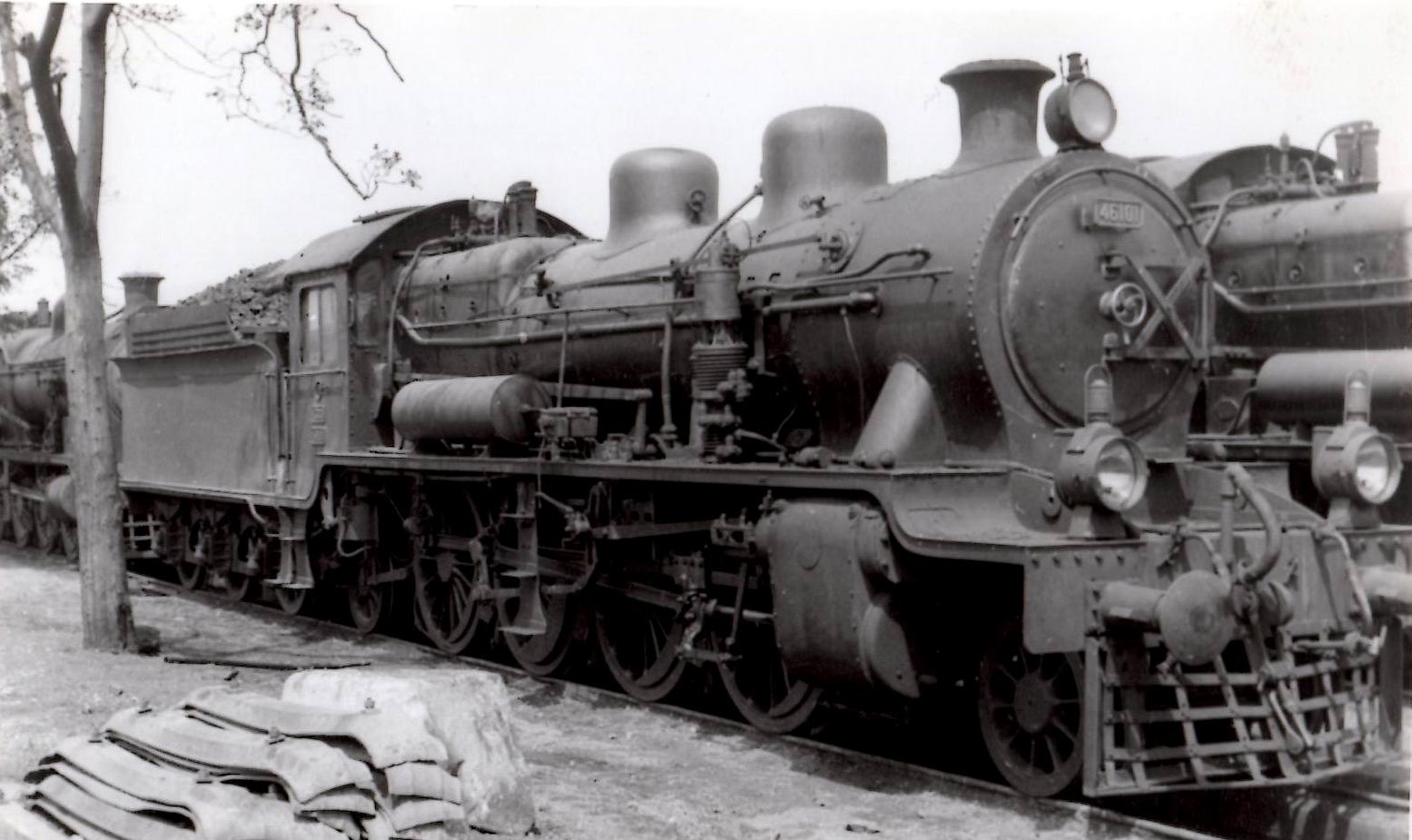

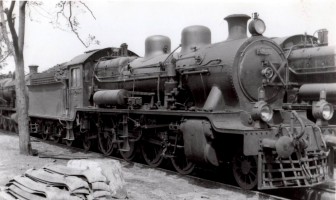

46101 İzmir Alsancak. 21st April 1955. Photo Alan Swale

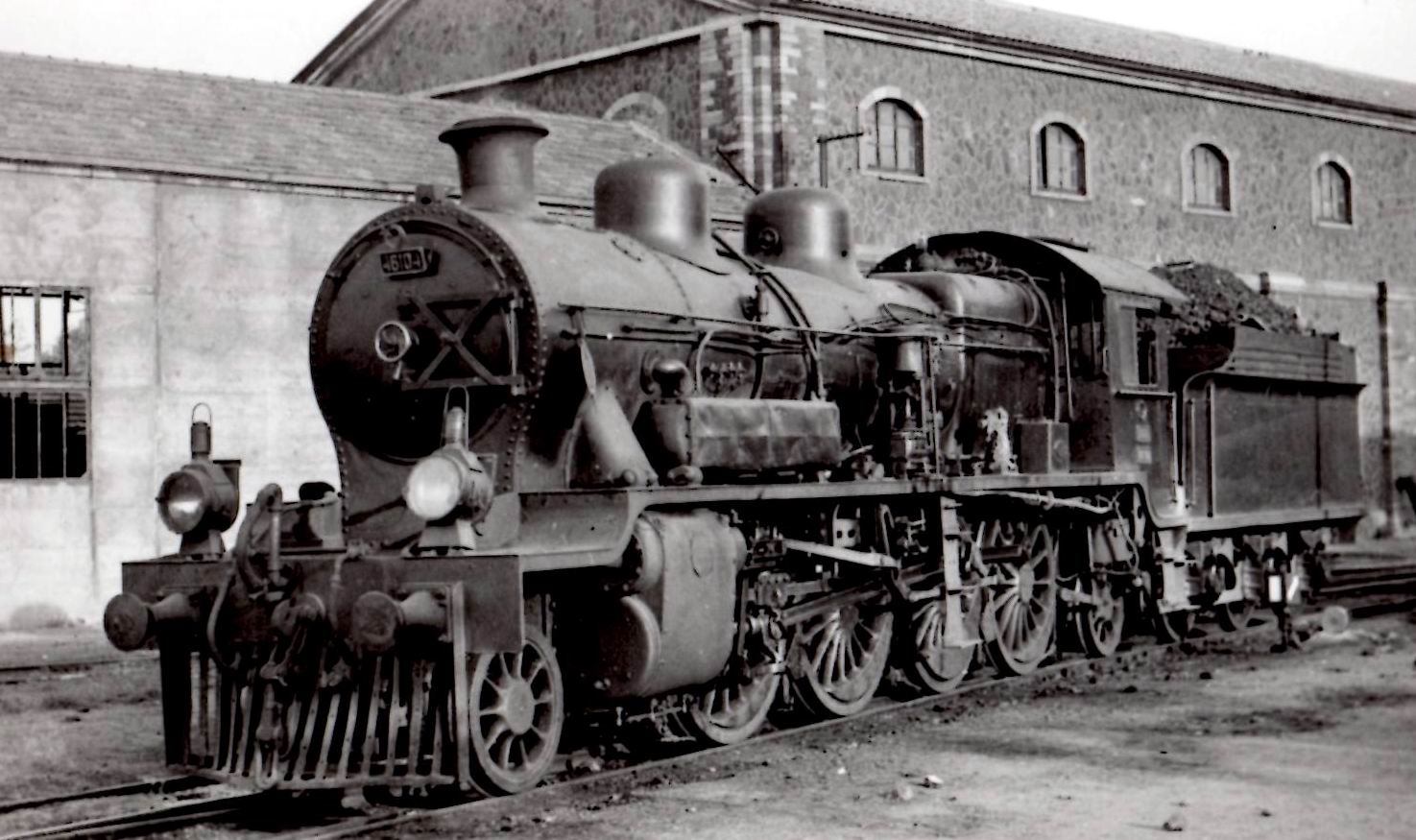

46104 İzmir Alsancak . 8th June 1955. Photo Alan Swale

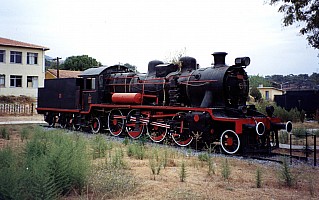

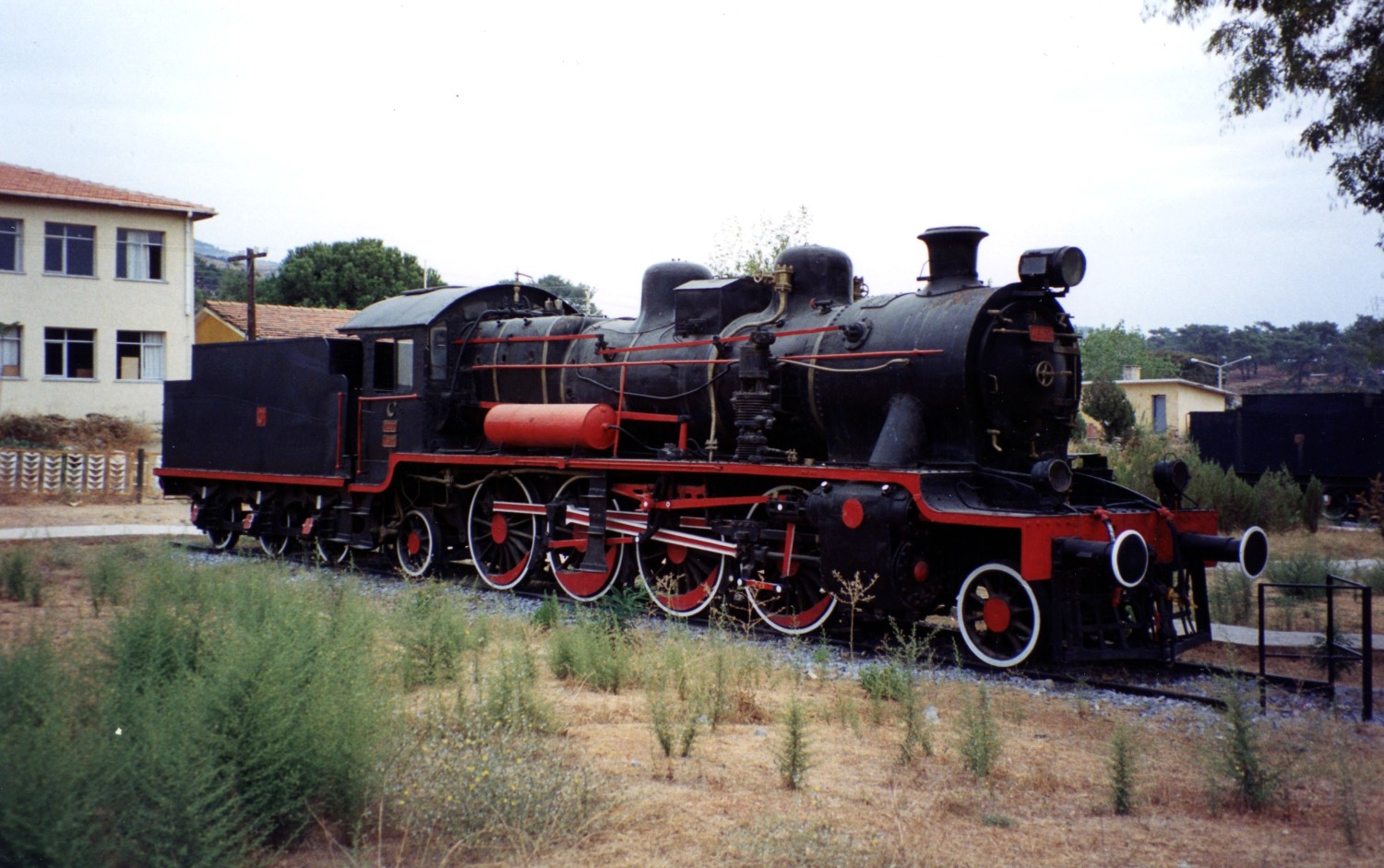

46103 Çamlık museum, 1995, photo Peter Crush

46103 Çamlık museum, 1995, photo Peter Crush

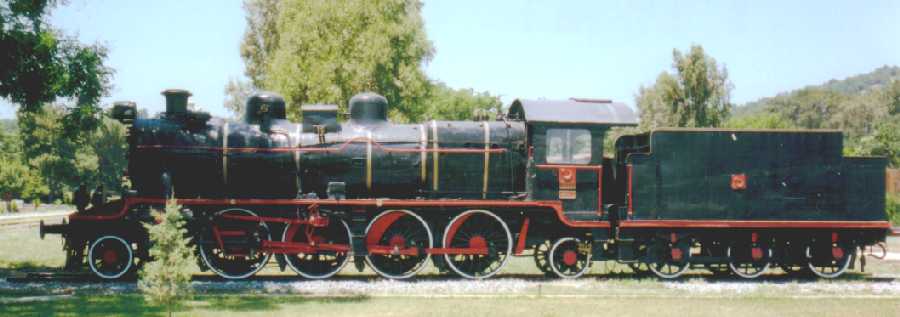

46103, Çamlık museum, August 1996

46103, Çamlık museum, August 1996. Photo JP Charrey

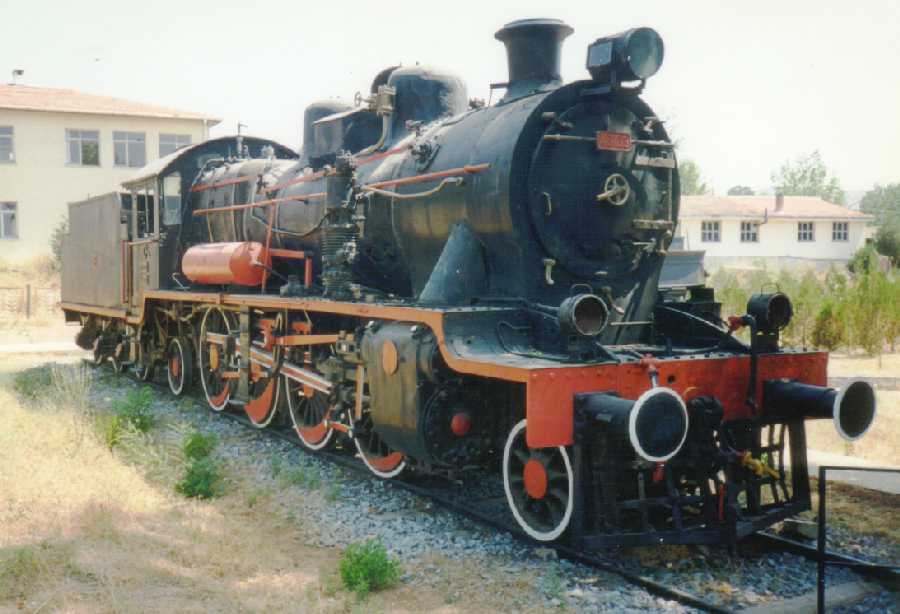

46103, Çamlık museum, June 2001

46103, Çamlık museum, June 2001. Photo JP Charrey

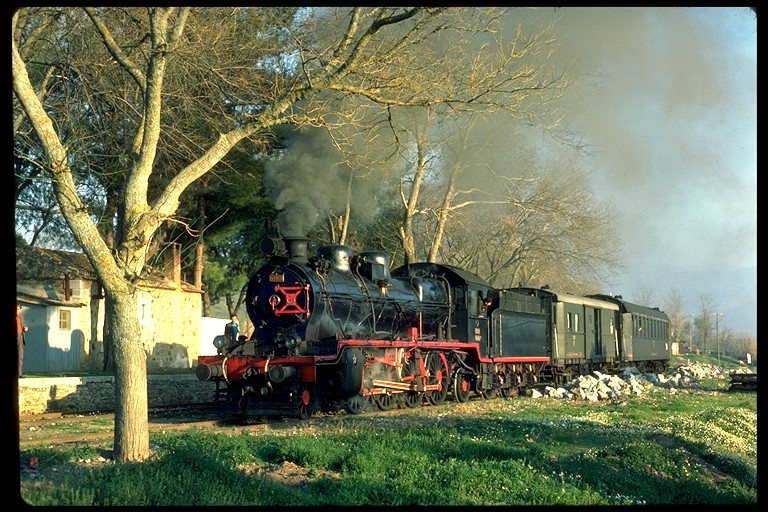

46106 near Çatal on a local passenger

46106 near Çatal on a local passenger.
On this day, 46106 had an easy job with such a short consist and in a flat area.
Photo Robin Lush, 20 march 1976

Engine main characteristics

Engine axle type1'D1'
Driving wheel dia1575 mm
Front bissel wheel dia953 mm
Rear bissel wheel dia953 mm
Number of cylinder2
Cylinder diameter495 mm
Piston stroke660 mm
Boiler pressure12 bar
Grate surface2,36 m2
Boiler pipe length0 m
Heating surface133,9 m2
Superheating surface28,6 m2
Fixed wheel base length0 m
Coupled wheel base length5,144 m
Overall wheel base9,487 m
Weight empty0 T
Weight loaded69,6 T
Adhesion weight46,4 T
Load per driving wheel11,6 T
Max speed60 km/h
Tractive effort9,25 T
Power (HP)1190 HP
Tender axle type3
Tender water capacity13,6 m3
Tender coal capacity7,1 T
Tender weight empty17,1 T
Tender weight loaded37,8 T
Engine + Tender
Loc + tender length18,44 m
Loc + tender weight107,4 T
