Ankara

Ankara has now two lines crossing each other in a big exchange station at Kizilay, the city business center. The second stage of the project will see an extension of the second line.

August 2012: CSR Zhuzhou Electric Locomotive has been confirmed as the winner of a contract to supply 342 metro cars to Ankara, for a value of the 2·5bn yuan. An initial 15 trainsets are to be delivered within 20 months, with the rest following within 39 months. The stainless steel cars will be 3120 mm wide, with the interior revised from Chinese domestic designs to take account of the taller average height of Turkish passengers. Maximum speed will be 80 km/h.

CSR plans to invest in a Turkish plant which would have 80% local staff, and could supply the European, Middle East and North African markets with up to 200 vehicles a year.

 Line 1 "Ankaray"Line 2 "Metro"
opening year (revenue service)30 August 1996December 1997
typeLight railheavy rail
route length8,5 km14,2 km
number of stations1112
Track gauge1435 mm1435 mm
Station platform length90m
Max headway2 mn (3mn currently used)90 s
Max capacity25000 passenger / hr70 000 passenger / hr
Traction power supply750V DC, 3rd rail750V DC, 3rd rail
ManufacturerSiemens / BredaBombardier
Rolling stock3 cars set
quantity: 11 sets
max speed: 80 km/h
Motor + trailer + trailer
3 cars set,
2 set are coupled at peak hours,
H6 Toronto subway type,
max speed: 80 km/h
quantity: 36 sets
Motor + trailer + motor

References

  1. Ankara metro on Wikipedia
  2. Ankara metro on UrbanRail.Net

Pictures of Metro

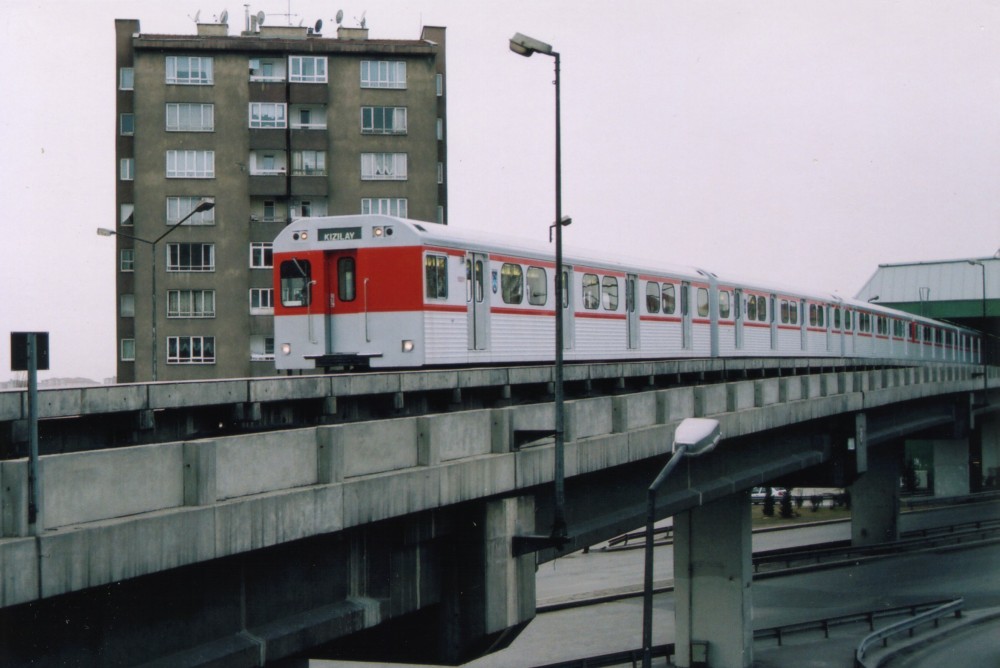

Line 2, Yenimahalle station, January 2005. Photo JP Charrey

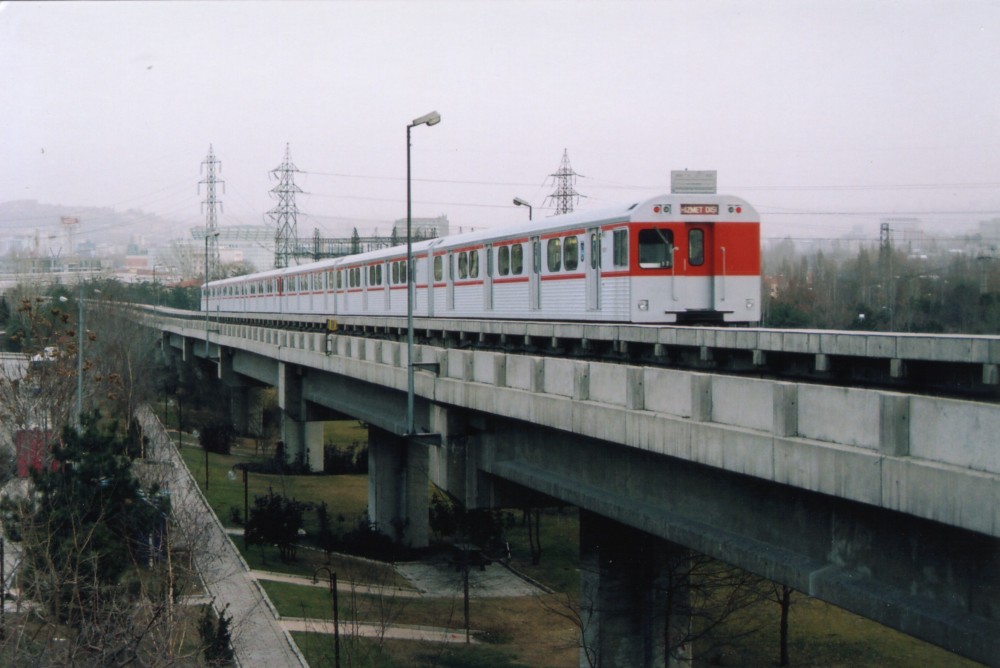

Line 2, Yenimahalle station, January 2005. Photo JP Charrey

Line 2, Yenimahalle station, January 2005. Photo JP Charrey

Line 2, Yenimahalle station, January 2005. Photo JP Charrey

Ankara metro, Photo Jack May

View of a westbound Ankara metro train from a pedestrian overpass just east of the Hastane station. 26 April 2011, Photo Jack May.

Ankara metro, Photo Jack May

Westbound Ankara metro train approaches the Hastane station. 26 April 2011, Photo Jack May.

Ankara metro, Photo Jack May

Back of an Ankara metro trains as it plunges from the elevated line into the underground Akköprü station. 26 April 2011, Photo Jack May.

Pictures of Ankaray

Ankara metro, Photo Jack May

Emek is the only station on the Ankaray metro above ground. A train of Siemens-built cars is shown leaving the station on its route to the center of Ankara. 26 April 2011, Photo Jack May.

Ankara metro, Photo Jack May

A train of Siemens-built articulated cars leaves the Emek station en route to Bahceliever station. 26 April 2011, Photo Jack May.
