3411 to 3413
- Axle: C1't
- Total quantity: 3
- First year: 1911
- Manufacturer: Robert Stephenson. Works Numbers 3419-21
- Ex ORC Numbers 5-7, TCDD Class C1
Engine main characteristics
Engine axle type | C1't |
Driving wheel dia | 1384 mm |
Front bissel wheel dia | 1067 mm |
Number of cylinder | 2 |
Cylinder dia | 457 mm |
Piston stroke | 660 mm |
Boiler pressure | 12 bar |
Grate surface | 1,77 m2 |
Heating surface | 115,6 m2 |
Superheating surface | n/a m2 |
Fixed wheel base length | 4,65 m |
Coupled wheel base length | 4,65 m |
Weight empty | 51,8 T |
Weight loaded | 61,2 T |
Water capacity | 6,4 m3 |
Coal capacity | 3 T |
Overall length | 11,1 m |
Max speed | 65 km/h |
Tractive effort | 9 T |

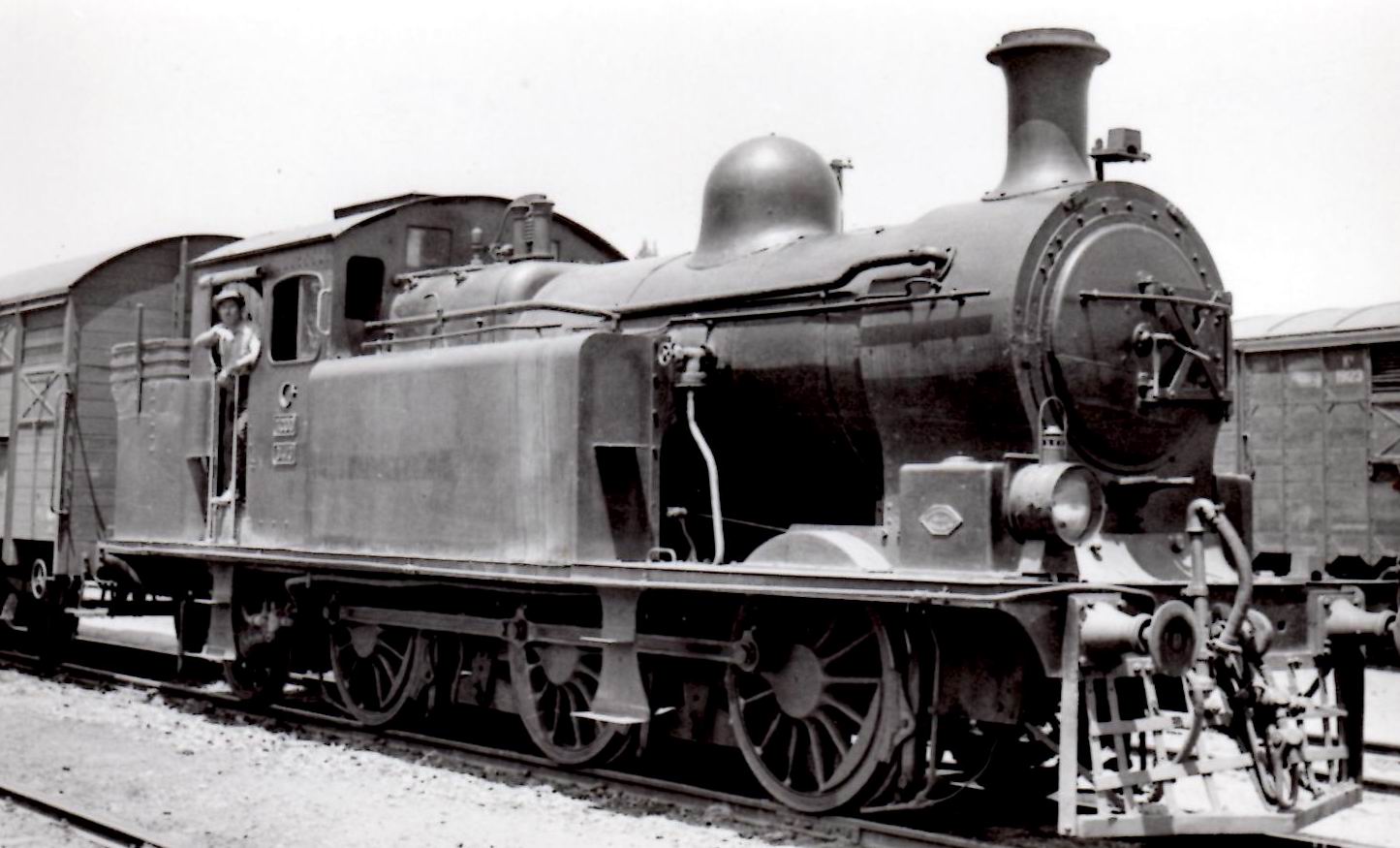

3413, Alaşehir. 6th June 1955. Photo Alan Swale. |
