Dinar to Eğirdir


Description

This line built by the ORC in 1910/1912. This explains why the kilometers are measured from Izmir. The ORC tried to reach Konya be could not secure the concession and were stopped in Eğirdir.

From Dinar, the line makes a big north south meander in order to climb the 100m altitude difference between Dinar and Karakuyu. The line goes south first to reach the entrance of a small pass about 5km away from Dinar station. It then makes a 180° turn to enter the pass the start the climb going. At the summit, a short tunnel allows entry on the plateau of Karakuyu which is reached about 3km after, in a very slight descend.

From Karakuyu, the line goes south through a flat plain lying at the bottom of a flat valley and crossing a swamp area. It then has to go through a small pass to reach Keçiborlu. Then again, the line is nearly flat, going south east with some long strech of straigh line, until a few kilometers before Eğirdir. There, a step descend is required to reach Eğirdir lying next to lake of the same name. Eğirdir is nearly 100m below the altitude of the plateau. The line does large loop with an 180° curve in order to ease the gradient. Right after the curve, a landslip required the line to be rebuilt in the 1970s on a steel viaduct. This became one of the most photogenic spot in Turkey with the lake as background. The lake itself is renowed for having a very turquoise color.

This line was cumbersome to operate: trains usually made a detour along the Isparta branch before going to Egirdir. Freight traffic was nil and passenger traffic minimal. Operation was dropped in 2003.

Stations & halts

KmStationComment
376,0DinarSee Denizli to Dinar
390,7KarakuyuJunction with the line to Dinar to Afyon
394,0Km 394+000halt
398,1Çapalı
401,4Incesuhalt
412,0KeçiborluLocation of a sulfur plant from 1935 to 1994
423,6GümüşgünJunction of the branch to Burdur
430,6Kırıkçayır
436,9Senircehalt
438,9BozanönüJunction of the branch to Isparta.
Line out of use from Bozanönü to Eğirdir
445,4Km 445+427halt
447,4Kuleönühalt
455,0Harmanörenhalt
463,4Makashalt
468,6Km 468+600halt
470,3EğirdirTerminal station of the line

Maps

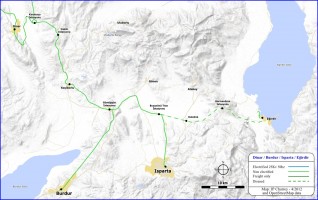

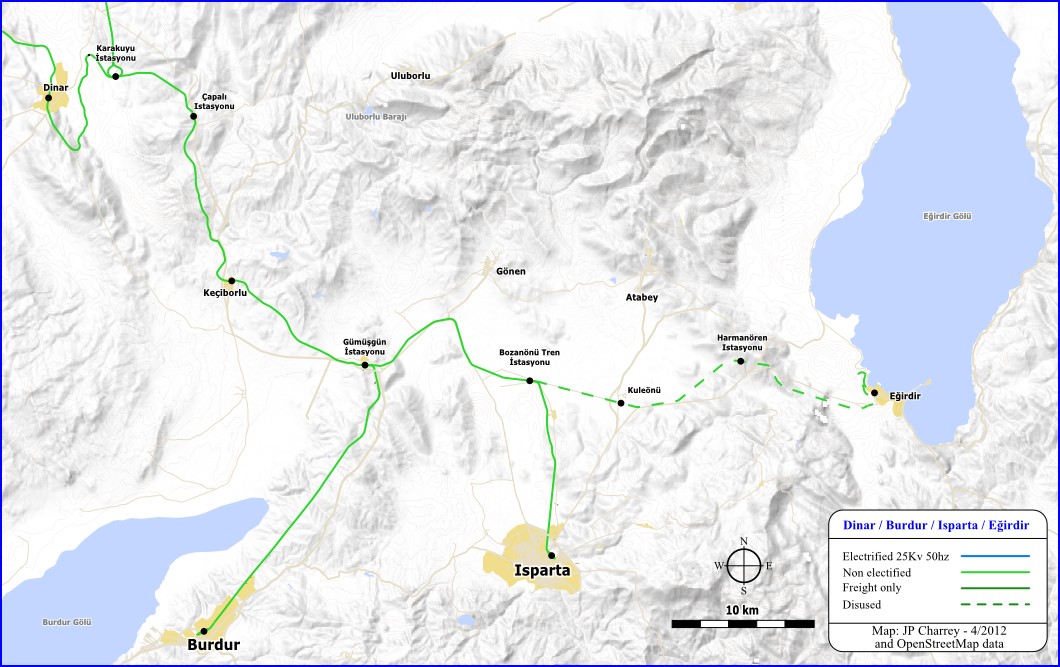

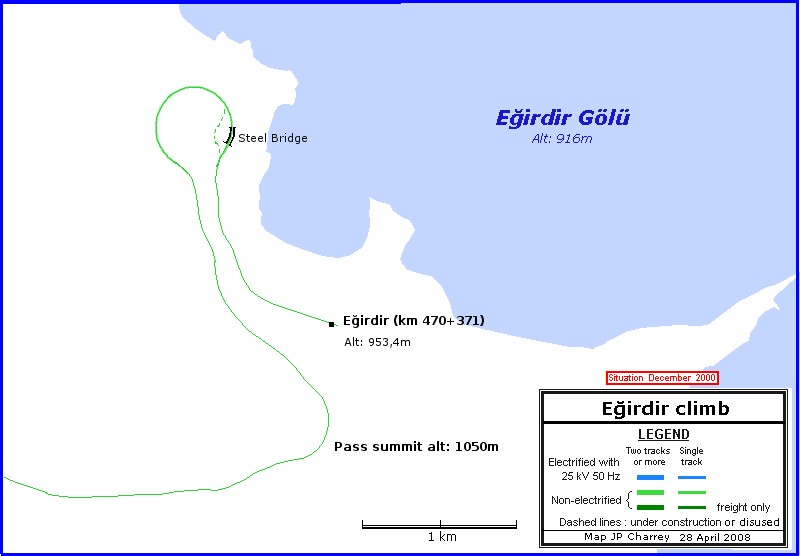

line-dinar-egirdir egirdir-climb

Pictures

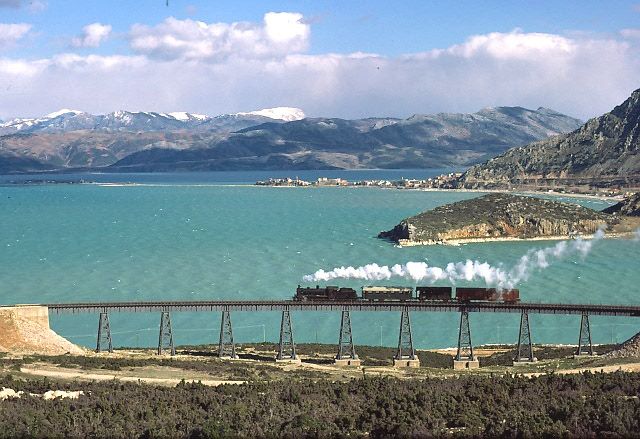

44000 crossing viaduct Eğirdir 8 March 1977. Photo Robin Lush
44000 crossing viaduct Eğirdir 8 March 1977. Photo Robin Lush
