Home > Railcars & MUs > MT5600

MT5601 to MT5611

  • Type: DMU-1
  • Quantity built: 11
  • Fist year: 1990
  • Power: 550
  • Manufacturer: Tüvasaş

These units are known under the brand name "Sakarya"

MT5600 main characteristics
DMU Axle notation
Loading gaugeUIC 505-1
Overall length (m)25,19
Overall width (m)28,5
Overall height (m)39,25
Length between bogie centers (m)16,4
Weight emtpy (T)46
Weight in working order (T)55
Wheel Diameter (mm)920 / 840 (new/worn)
Maximum Speed140 km/h
Passenger Capacity64 sitting
Power (KW)410 ( 550HP)
engine typeCummins KTA19R, 6cylinders, turbo charged,
TransmissionHydraulic: Voith 320RZ
BrakePneumatic disc brake; Hydrodynamic brake Voith KB260/11
Door typeSwing sliding pneumatic doors
AC systemFull automatic air conditioning system, hot water heating by engine waste heat
CouplersAutomatic couplers and fixed side buffers
Minimum curve radius90 m

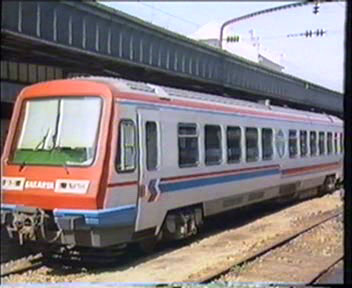

MT5600 at Haydarpasa. Photo TÜVASAS

MT5600 at Haydarpasa. Photo TÜVASAS
