Home > Railcars & MUs > MV5100

MV5101 to 5106

  • DMU-1
  • Quantity built: 6
  • First year: 1942
  • Power: 210 HP
  • Manufacturer: MAN

The MV5100 are a more powerful and more advanced version of the 21 to 25 railcars, but they belong to the same family. Here again, the unit has a diesel engine driving a mechanical transmission through a gear box, much like a truck. The internal layout was again second and third class.

MV5200 main characteristics
DMU Axle notation1A
Overall length (m)12,2
total weight (T)20
Max speed (km/h)90
Total capacity2nd class: 19
" "3rd class: 27
Power:154 KW (210 HP) at 1000 rpm
EngineMAN, 6 cylinders, type W6V17,5/22
TransmissionMechanical, 5 speeds, type Mylius

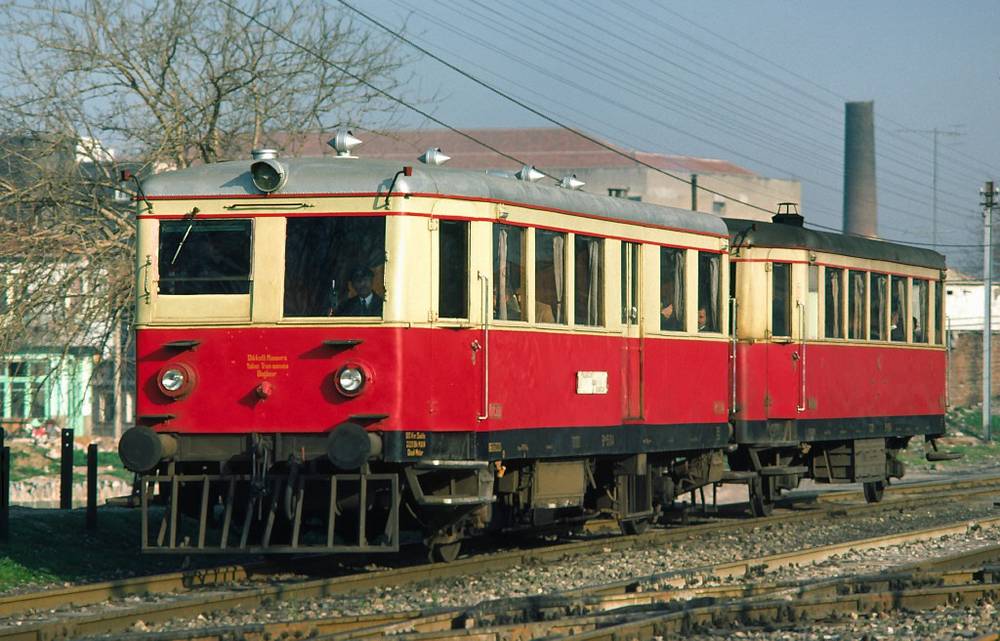

MV5100 and a trailer, Izmir, 21 March 1976. Photo Robin Lush

MV5100 and a trailer, Izmir, 21 March 1976. Photo Robin Lush

Another MV5100 and its trailer, this time heading south through the Izmir suburbs, 6 March 1977. Photo Robin lush

Another MV5100 and its trailer, this time heading south through the Izmir suburbs, 6 March 1977. Photo Robin lush
