Home > Traction > E52500

E52501 to E52522

  • Axle: Bo'Bo'
  • Total quantity: 22
  • First year: 1998 (after renovation)
  • Power: 3860 KW
  • Manufacturer: Koncar Elektricne Lokomotvie

Description

These engines currently belong to ZBH (Bosnia Herzegovina railways) and are rented by TCDD. They are of ZBH type 1143, which is a renovation of former JZ (Yugoslavian railways) engines type 441. Koncar carried out this renovation in Zagreb on the same design as HZ (Croatian Railways) type 1141.3. Koncar originally assembled these engines in the late 60's, early 70's by licensing the ASEA type Rb and their diode rectifier design. During the renovation, the diodes were replaced by a thyristor rectifier, thus the 1143 became cousins of ASEA type Rc.

During renovation, the body remained unchanged and is almost identical to the original Swedish design. It can be easily recognized in all the countries where these locomotives were exported (Yugoslavia, Romania, Norway, USA, …)

These locomotives were withdrawn from TCDD on April 3, 2011 upon finish of the lease contract.

Main characteristics

Power rating3860 KW
Power Supply:25 KV, 50Hz
Weight:82 t
Overall length:15,47 m
Max Tractive effort:275 KN
Max speed:120 Km / h

Delivery & Serial numbers

In addition to the first batch of 15 locos, TCDD hired 5 and then 2 more locos. All locos are still in service except for two withdraw after a serious crash.

Several units suffered minor crash, requiring a return to Koncar shops for heavy repairs.

Eng. NbrManuf.Manuf nbr.PreviousMax speedDeliv to TCDDRemark
E52501KoncarRK-JŽ-441 093/71ZBH 441 0931201998
E52502KoncarRK-JŽ-441 528/77ZBH 441 5281201998Destroyed in Tavsancil accident 11 Aug 2004 / scrapped
E52503ASEASGP 65211/68ZBH 441 3061201998
E52504KoncarRK-JŽ-441-804/85ZBH 441 8041201998
E52505KoncarRK-JŽ-441-807/85ZBH 441 8071201998
E52506KoncarRK-JŽ-441-810/86ZBH 441 8101201998Destroyed in Tavsancil accident 11 Aug 2004 / scrapped
E52507KoncarRK-JŽ-441 058/71ZBH 441 0581401998
E52508KoncarRK-JŽ-441 101/72ZBH 441 1011401998Re-geared in Zagreb, march 2004
E52509ASEASGP 65214/68ZBH 441 3091401998
E52510ASEASGP 65231/68ZBH 441 4101201998
E52511ASEASGP 65180/67ZBH 441 0011201998
E52512ASEASGP 65185/67ZBH 441 0061401998Involved in Pamukova accident 22 Jul 2004, no damage
E52513ASEASGP 65186/67ZBH 441 0071201998
E52514KoncarRK-JŽ-441 053/71 (?)ZBH 441 0531201998
E52515KoncarRK-JŽ-441 065/71ZBH 441 0651401998
E52516KoncarRK-JŽ-441 090/71ZBH 441 0901201999
E52517KoncarRK-JŽ-441 095/72ZBH 441 0951201999
E52518KoncarRK-JŽ-441 124/77ZBH 441 1241201999
E52519ASEASGP 65191/67ZBH 441 3031201999
E52520ASEASGP 65223/68ZBH 441 4071401999
E52521ASEASGP 65229/68ZBH 441 408160Oct 2004
E52522  HZ 1141 0231602005

Liveries

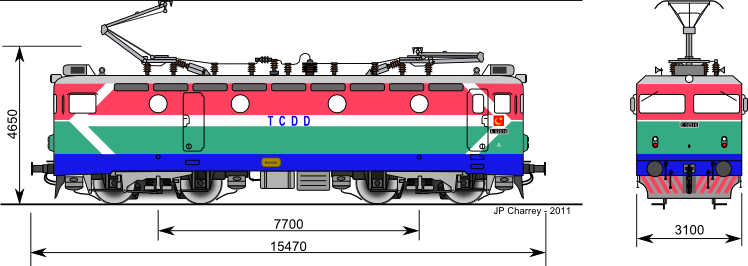

As of 2006, three liveries are recorded. The original green and red livery was on all locomotives. The body upper half is in red, the lower half in green. the two colors are separated by a white band forming an arrow on the cabs. The roof and the frame skirts are in blue.

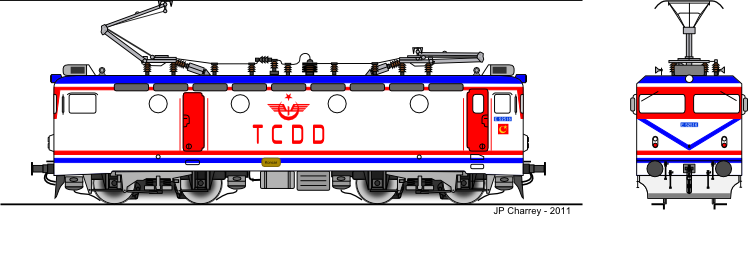

A transitional white livery. The body is all white with a blue and a red strip at the bottom. The roof is blue. The doors are red. A blue strip, V shaped is painted on each front end. This livery was introduced in late 2003. Only 52516 was recorded with this livery and was later repainted.

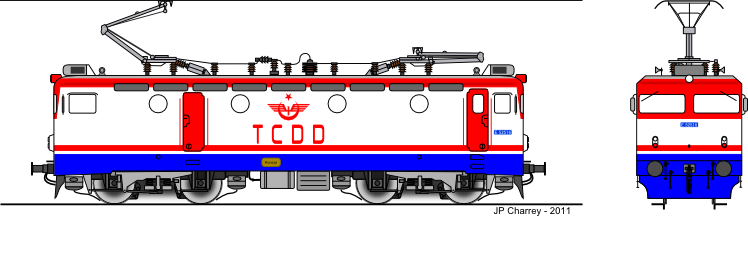

The last white red blue livery. The body is white with two red strips: on at the bottom, another at the top. The frame skirts are blue. The roof is grey. The doors are red as well as a pro-eminent TCDD logo. This livery was introduced in 2004 but not all loco were repainted at the time of withdrawal.

Status of liveries in 2011:

Eng. NbrCurrent livery
E525011-red and green
E525021-red and green
E525031-red and green
E525041-red and green
E525051-red and green
E525061-red and green
E525073- white body, red strip top and bottom
E525081-red and green
E525091-red and green
E525101-red and green
E525111-red and green
E525123- white body, red strip top and bottom
E525131-red and green
E525141-red and green
E525153- white body, red strip top and bottom
E525163- white body, red strip top and bottom
E525173- white body, red strip top and bottom
E525181-red and green
E525193- white body, red strip top and bottom
E525203- white body, red strip top and bottom
E525213- white body, red strip top and bottom
E525223- white body, red strip top and bottom

Pictures

E52509 leading 7 coaches, ready to depart from Haydarpasa station to Adapazari

E52509 leading 7 coaches, ready to depart from Haydarpasa station to Adapazari. 3 November 2000, 15h40. Photo JP Charrey

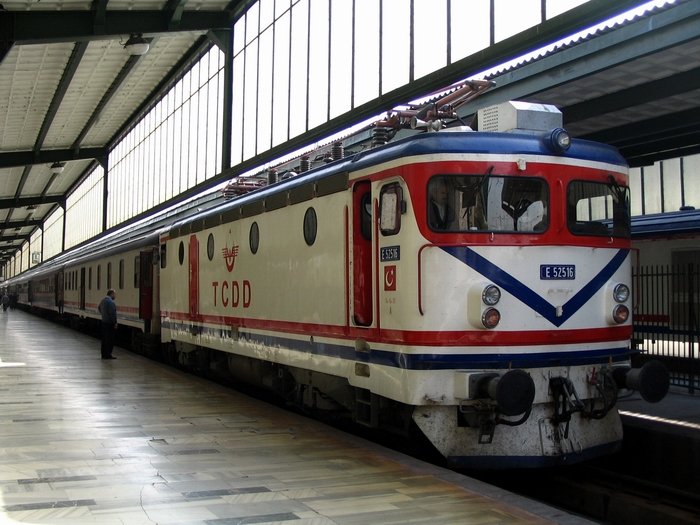

E52516 on Kars-Istanbul express, in Ankara. 27 October 2004

E52516 on Kars-Istanbul express, in Ankara. 27 October 2004. This engine as the white / blue / red livery. Photo Brian Dunn

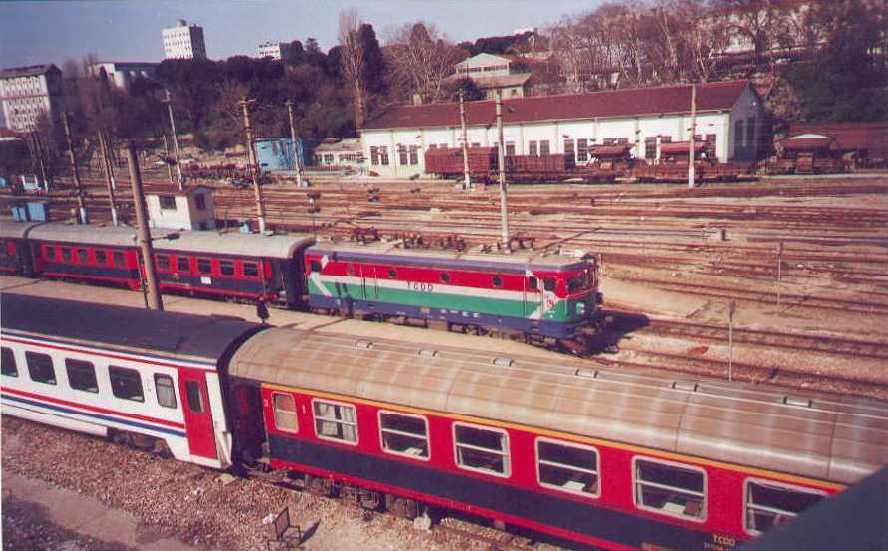

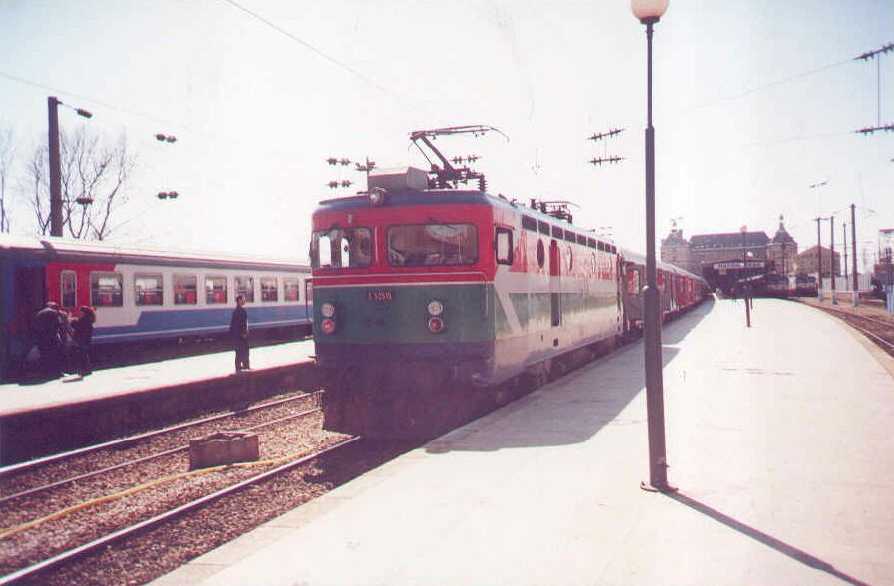

E52515 heading Adapazari Express at Haydarpasa

E52515 heading Adapazari Express at Haydarpasa. March 2001. Photo Gökçe Aydin

E52515 heading Adapazari Express at Haydarpasa

E52515 heading Adapazari Express at Haydarpasa. March 2001. Photo Gökçe Aydin

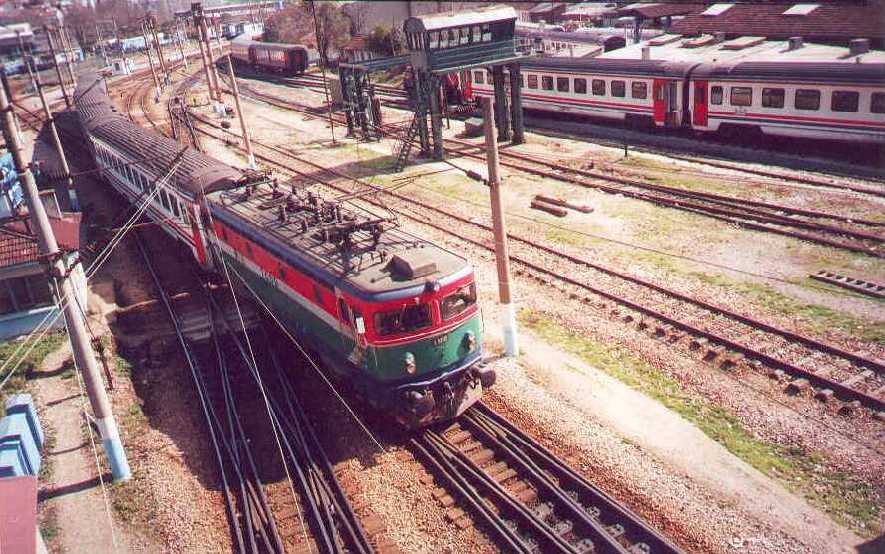

E52512 and Eskisehir express entering Haydarpasa, Notice the TVS2000 rolling stock. March 2001

E52512 and Eskisehir express entering Haydarpasa, Notice the TVS2000 rolling stock. March 2001. Photo Gökçe Aydin

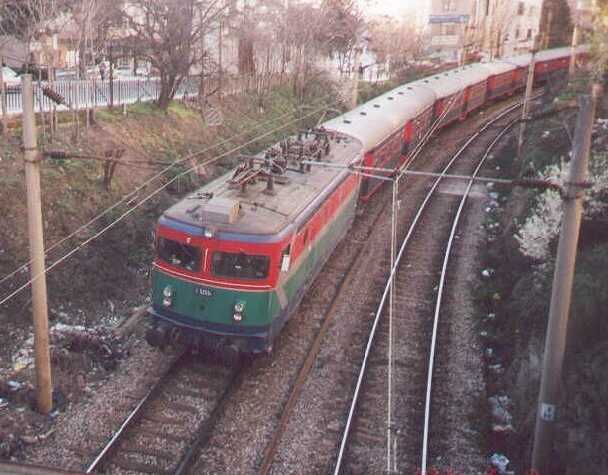

E52514, Adapazari Express , entering Bostanci station from Haydarpasa. March 2001

E52514, Adapazari Express , entering Bostanci station from Haydarpasa. March 2001. Photo Gökçe Aydin

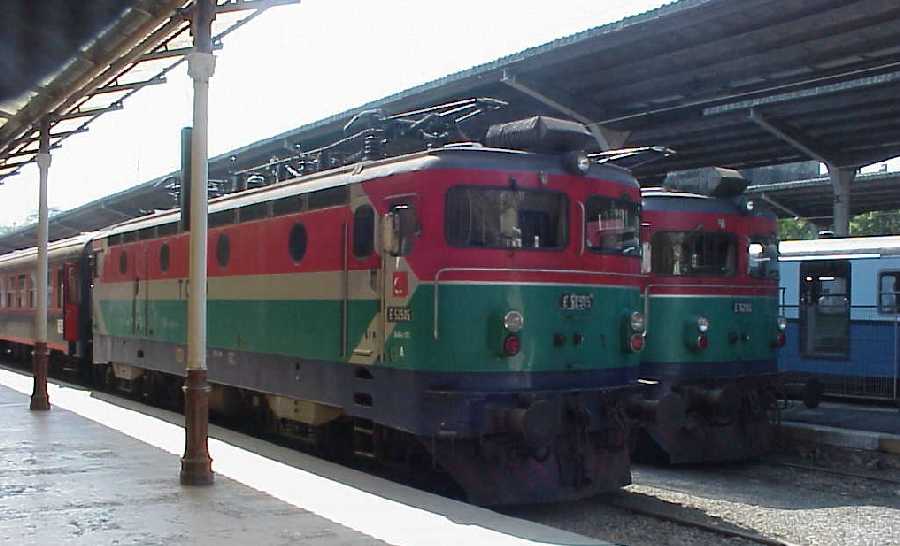

E52505 and E52502 at Sirkeci Station, 4 June 2001

E52505 and E52502 at Sirkeci Station, 4 June 2001, photo Derya Ferendeci

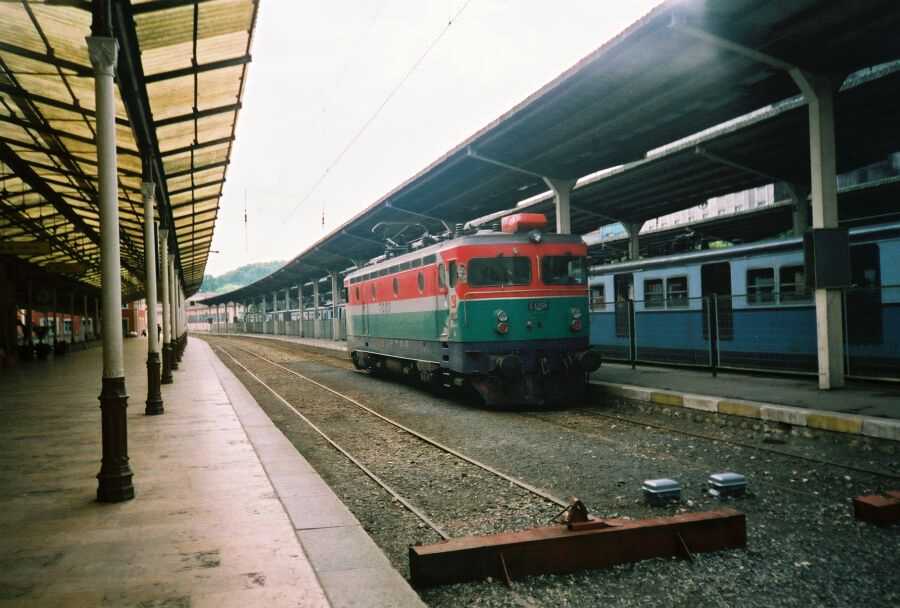

E52508 again at Sirkeci

E52508 again at Sirkeci, this locomotive air conditioning unit above the cab painted in red instead of grey on the other units. July 2001, photo Gökçe Aydin

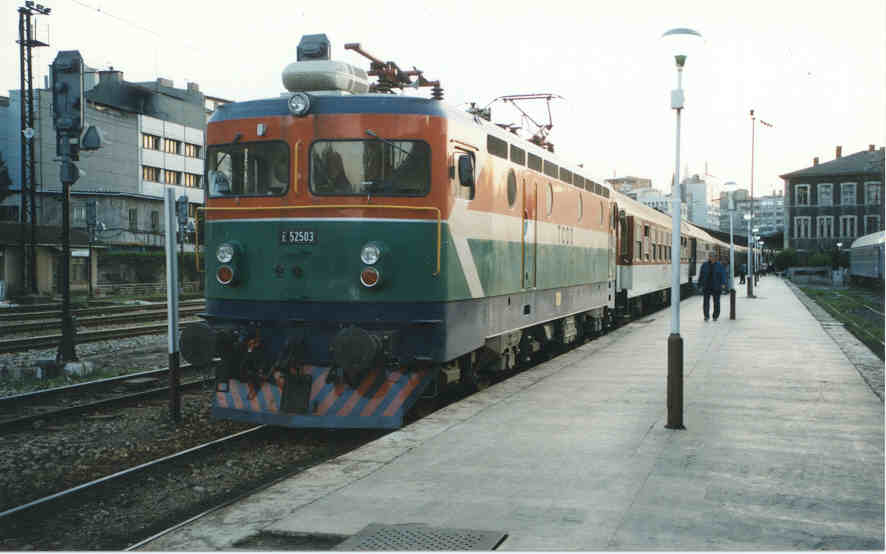

E52503 at Sirkeci. 1999

E52503 at Sirkeci. 1999. Photo Malcolm Peakman

E52521 entering Sirkeci station, September 2005, photo Phil Wormald

E52521 entering Sirkeci station, September 2005, photo Phil Wormald
